Round Electromagnets
Flat-faced round electromagnets or holding solenoids from 0.50″ to 4.0″ dia. These APW electromagnets or holding solenoids available With a wide range of options and holding forces. All made in the USA with manufacturing factory direct support. – – – (if you don’t find it, we can make it)
Round holding solenoid electromagnets are Available with several options;
- Voltages from 3 vdc to 230 ac
- Quick Release options (center post recessed .003-.005″ for air gap at surface)
- Encapsulated or Non-Encapsulated coils
- Anti-Rotation (rear offset dowel pins)
- Thru mounting from Front with cap head screw or Rear tapped threaded mounting
Filter
| Image | Details | Outer Dia. (in) | Height (in) | Voltage | Holding Force (lbs) | Price | Add to cart |
|---|---|---|---|---|---|---|---|
|
EM100-115ac-122 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 19 lbs.
Outer Dia. (in): 1
Height (in): 0.78
Voltage: 115
Holding Force (lbs): 19
$32.95
|
1 | 0.78 | 115 | 19 | $32.95 |
|
|
EM100-12-222 - Round Electromagnet 1 inch Dia. 12 volts DC - Holding 25 lbs.
Outer Dia. (in): 1
Height (in): 0.78
Voltage: 12
Holding Force (lbs): 25
$27.23
|
1 | 0.78 | 12 | 25 | $27.23 |
|
|
EM100-24-222 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 25 lbs.
Outer Dia. (in): 1
Height (in): 0.78
Voltage: 24
Holding Force (lbs): 25
$27.23
|
1 | 0.78 | 24 | 25 | $27.23 |
|
|
EM100-115ac-222 - Round Electromagnet 1 inch Dia. 115 volts AC - Holding 25 lbs.
Outer Dia. (in): 1
Height (in): 0.78
Voltage: 115
Holding Force (lbs): 25
$32.95
|
1 | 0.78 | 115 | 25 | $32.95 |
|
|

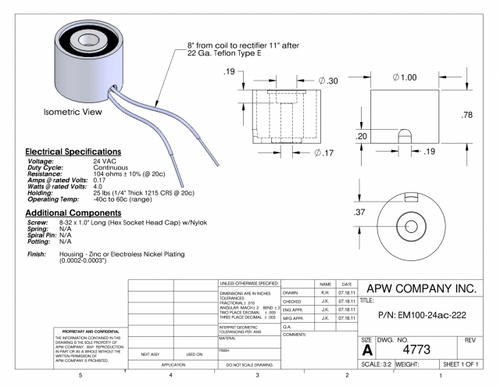

EM100-24ac-222 - Round Electromagnet 1 inch Dia. 24 volts AC - Holding 25 lbs.
Outer Dia. (in): 1
Height (in): 0.78
Voltage: 24
Holding Force (lbs): 25
$32.95
|
1 | 0.78 | 24 | 25 | $32.95 |
|
|
EM075-12-122 - Round Electromagnet 0.75 inch Dia. 12 volts DC - Holding 4.5 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 12
Holding Force (lbs): 4.5
$29.24
|
0.75 | 0.62 | 12 | 4.5 | $29.24 |
|
|
EM075-6-122 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 4.5 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 6
Holding Force (lbs): 4.5
$29.24
|
0.75 | 0.62 | 6 | 4.5 | $29.24 |
|
|
EM075-24-212-B - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 24
Holding Force (lbs): 6
$34.10
|
0.75 | 0.62 | 24 | 6 | $34.10 |
|
|
EM075-24-122 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 4.5 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 24
Holding Force (lbs): 4.5
$29.24
|
0.75 | 0.62 | 24 | 4.5 | $29.24 |
|
|
EM075-6-222 - Round Electromagnet 0.75 inch Dia. 6 volts DC - Holding 6 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 6
Holding Force (lbs): 6
$29.24
|
0.75 | 0.62 | 6 | 6 | $29.24 |
|
|
EM075-24-212-A - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 24
Holding Force (lbs): 6
$34.10
|
0.75 | 0.62 | 24 | 6 | $34.10 |
|
|
EM075-24-222 - Round Electromagnet 0.75 inch Dia. 24 volts DC - Holding 6 lbs.
Outer Dia. (in): 0.75
Height (in): 0.62
Voltage: 24
Holding Force (lbs): 6
$29.24
|
0.75 | 0.62 | 24 | 6 | $29.24 |
|
