SKU:
4776

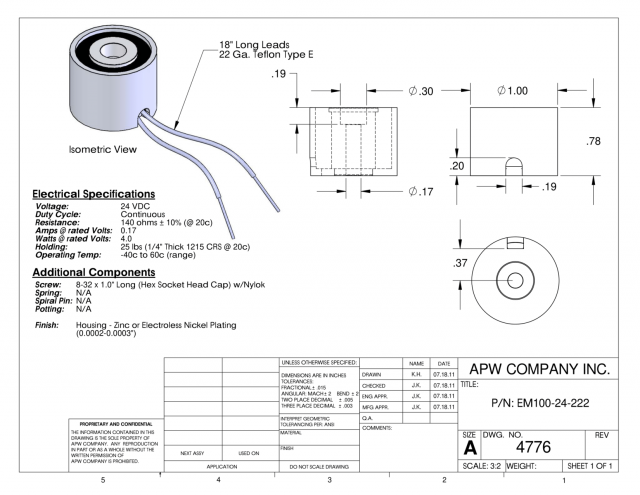

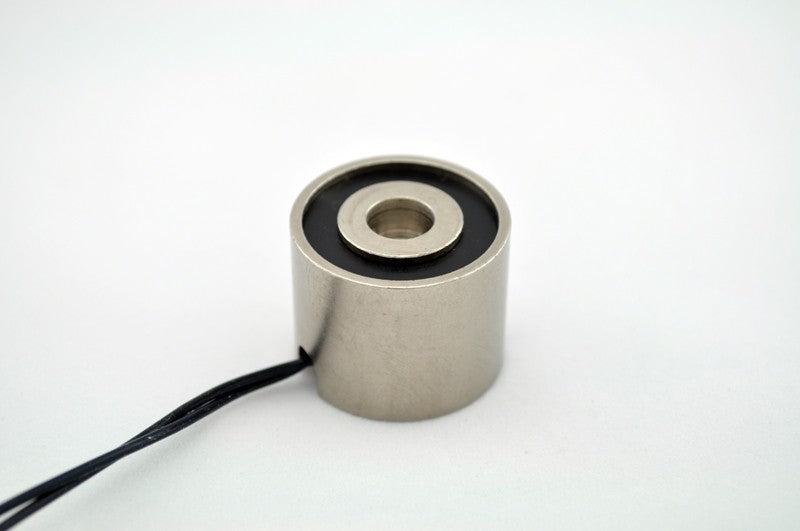

EM100-24-222 - Round Electromagnet 1 inch Dia. 24 volts DC - Holding 25 lbs.
$27.23
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Specifications
Height (mm)
19.81
Height (in)
0.78
Outer Diameter (mm)
25.4
Outer Diameter (in)
1
Holding Force (Lbs.)
25
Ohms
150.0
Watts
3.84
Amps
0.16
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
8-32 x 1
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2
