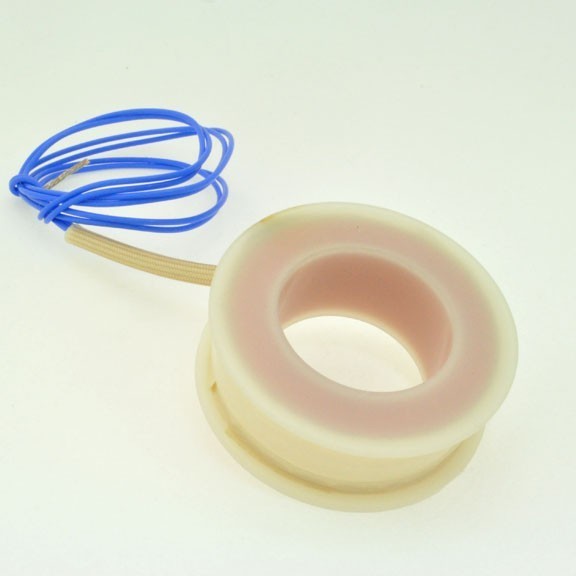

Stock Electrical Coil - 1.065 ID X 1.9 OD - 12 volts - 27 oHms image 0

Stock Electrical Coil - 1.065 ID X 1.9 OD - 12 volts - 27 oHms

$16.00
Skip to product information
Stock Electrical Coil - 1.065 ID X 1.9 OD - 12 volts - 27 oHms image 0
SKU: FC-6488

Stock Electrical Coil - 1.065 ID X 1.9 OD - 12 volts - 27 oHms

$16.00
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Bobbin ID (mm)
27.05
Bobbin ID (in)
1.065
Length (mm)
17.53
Length (in)
0.69
Outer Diameter (mm)
48.26
Outer Diameter (in)
1.9
Coil Turns
900
MW Gauge
29
Inductance
27.6 mH
Ohms
27.27
Watts
5.28
Amps
0.44
Voltage
12

Description

Our standard coils are coils that are used in our standard electromagnets and other applications available for your R&D use and or production use where suited. Items are produced with a minimum rated magnet wire of 155c Any items not in stock can be made and ship in just a few days. Note that Standard Finished Coils are R&D items only and are NOT items that are returnable if they don't work for your application. All of our products are 100% inspected before they ship and items not working in an application is not covered as a warranty return.
