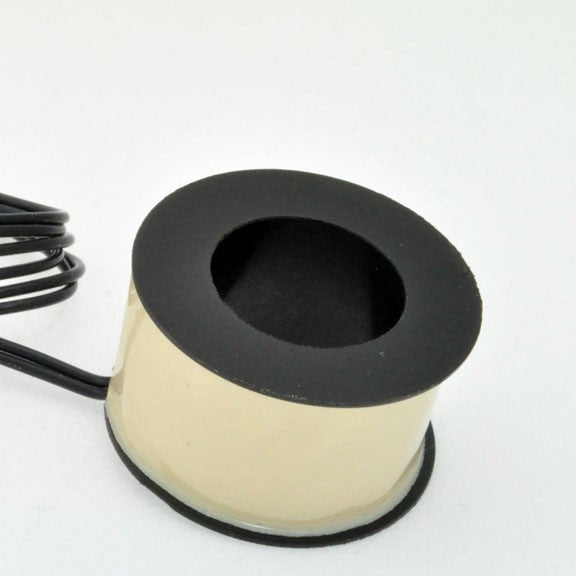

Stock Electrical Coil - 0.665 ID X 1.2 OD - 9 volts - 20 oHms image 0

Stock Electrical Coil - 0.665 ID X 1.2 OD - 9 volts - 20 oHms

$14.00
Skip to product information
Stock Electrical Coil - 0.665 ID X 1.2 OD - 9 volts - 20 oHms image 0
  • Stock Electrical Coil - 0.665 ID X 1.2 OD - 9 volts - 20 oHms image 0
Stock Electrical Coil - 0.665 ID X 1.2 OD - 9 volts - 20 oHms
SKU: FC-6099

Stock Electrical Coil - 0.665 ID X 1.2 OD - 9 volts - 20 oHms

$14.00
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Bobbin ID (mm)
16.89
Bobbin ID (in)
0.665
Length (mm)
17.14
Length (in)
0.675
Outer Diameter (mm)
30.48
Outer Diameter (in)
1.2
Coil Turns
900
MW Gauge
29.5
Inductance
13.24 mH
Ohms
20.0
Watts
4.05
Amps
0.45
Voltage
9

Description

Our standard coils are coils that are used in our standard electromagnets and other applications available for your R&D use and or production use where suited. Items are produced with a minimum rated magnet wire of 155c Any items not in stock can be made and ship in just a few days. Note that Standard Finished Coils are R&D items only and are NOT items that are returnable if they don't work for your application. All of our products are 100% inspected before they ship and items not working in an application is not covered as a warranty return.

SKU: FC-6099
Category: Standard Stock Coils
Tags: 0.45 , 0.665 , 0.675 , 1.2 , 13.24 mH , 20 , 29.5 , 4.05 , 9 , 900 , Standard Stock Coils
