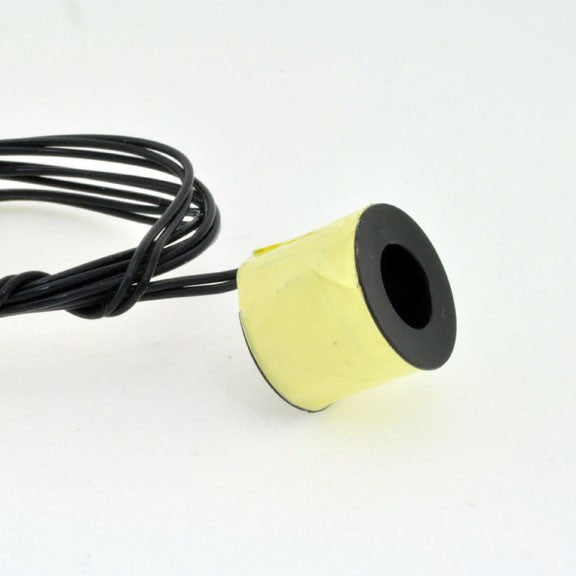

Stock Electrical Coil - 0.315 ID X 0.685 OD - 12 volts - 142 oHms image 0

Stock Electrical Coil - 0.315 ID X 0.685 OD - 12 volts - 142 oHms

$12.00
Skip to product information
Stock Electrical Coil - 0.315 ID X 0.685 OD - 12 volts - 142 oHms image 0
SKU: FC07512

Stock Electrical Coil - 0.315 ID X 0.685 OD - 12 volts - 142 oHms

$12.00
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Bobbin ID (mm)
8.0
Bobbin ID (in)
0.315
Length (mm)
13.21
Length (in)
0.52
Outer Diameter (mm)
17.4
Outer Diameter (in)
0.685
Coil Turns
2150
MW Gauge
37
Inductance
30 mH
Ohms
150.0
Watts
0.96
Amps
0.08
Voltage
12

Description

Our standard coils are coils that are used in our standard electromagnets and other applications available for your R&D use and or production use where suited. Items are produced with a minimum rated magnet wire of 155c Any items not in stock can be made and ship in just a few days. Note that Standard Finished Coils are R&D items only and are NOT items that are returnable if they don't work for your application. All of our products are 100% inspected before they ship and items not working in an application is not covered as a warranty return.
