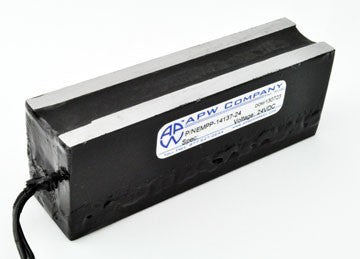

EMPP-14137-24 Parallel Pole Electromagnet 1.0 W x 4.0 L x 1.27 H - 24 vdc Holding 260 lbs
$187.54
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

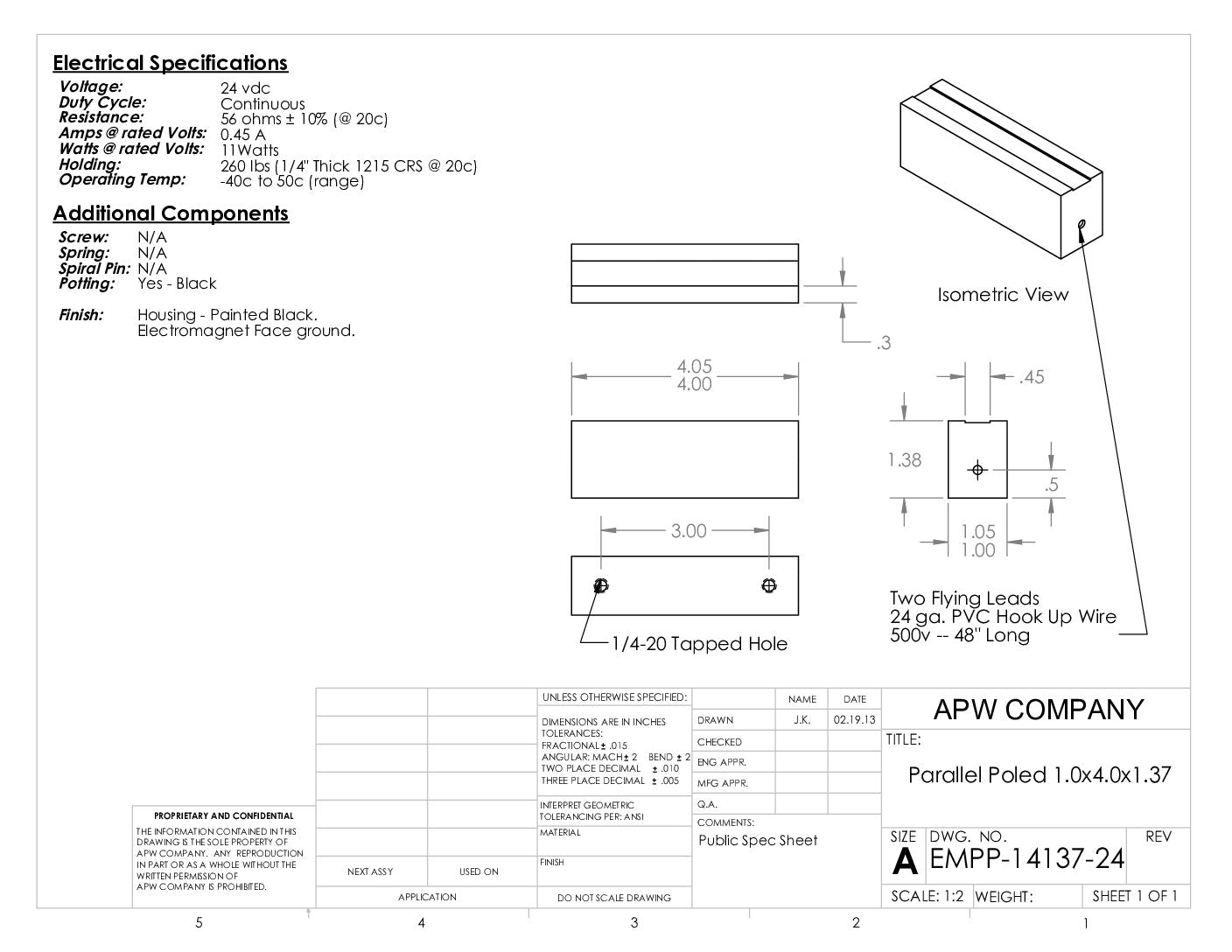

Specifications
Width (mm)
25.4
Width (in)
1
Height (mm)
35.05
Height (in)
1.38
Length (mm)
101.6
Length (in)
4
Holding Force (Lbs.)
260
Ohms
53.33
Watts
10.8
Amps
0.45
Duty
Continuous
Current
DC
Voltage
24
Lead Wire Length (in)
48
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Tapped 1/4-28
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
24
Lead Wire Type
PVC Hook Up Wire
Lead Wire Length (mm)
1219.2
