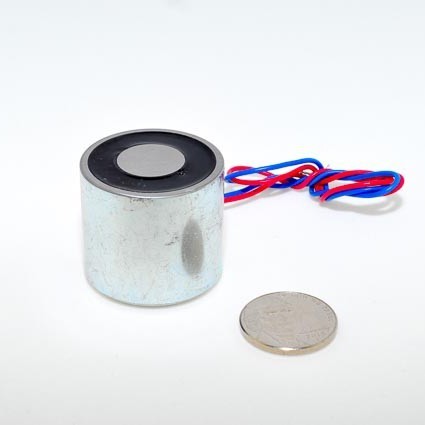

EML32mm-12 - Round Permanent Electromagnet 32 mm Dia. 12 volts DC - Holding 40 lbs. image 0

EML32mm-12 - Round Permanent Electromagnet 32 mm Dia. 12 volts DC - Holding 40 lbs.

$46.20
Skip to product information
EML32mm-12 - Round Permanent Electromagnet 32 mm Dia. 12 volts DC - Holding 40 lbs. image 0
SKU: 6667

EML32mm-12 - Round Permanent Electromagnet 32 mm Dia. 12 volts DC - Holding 40 lbs.

$46.20
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

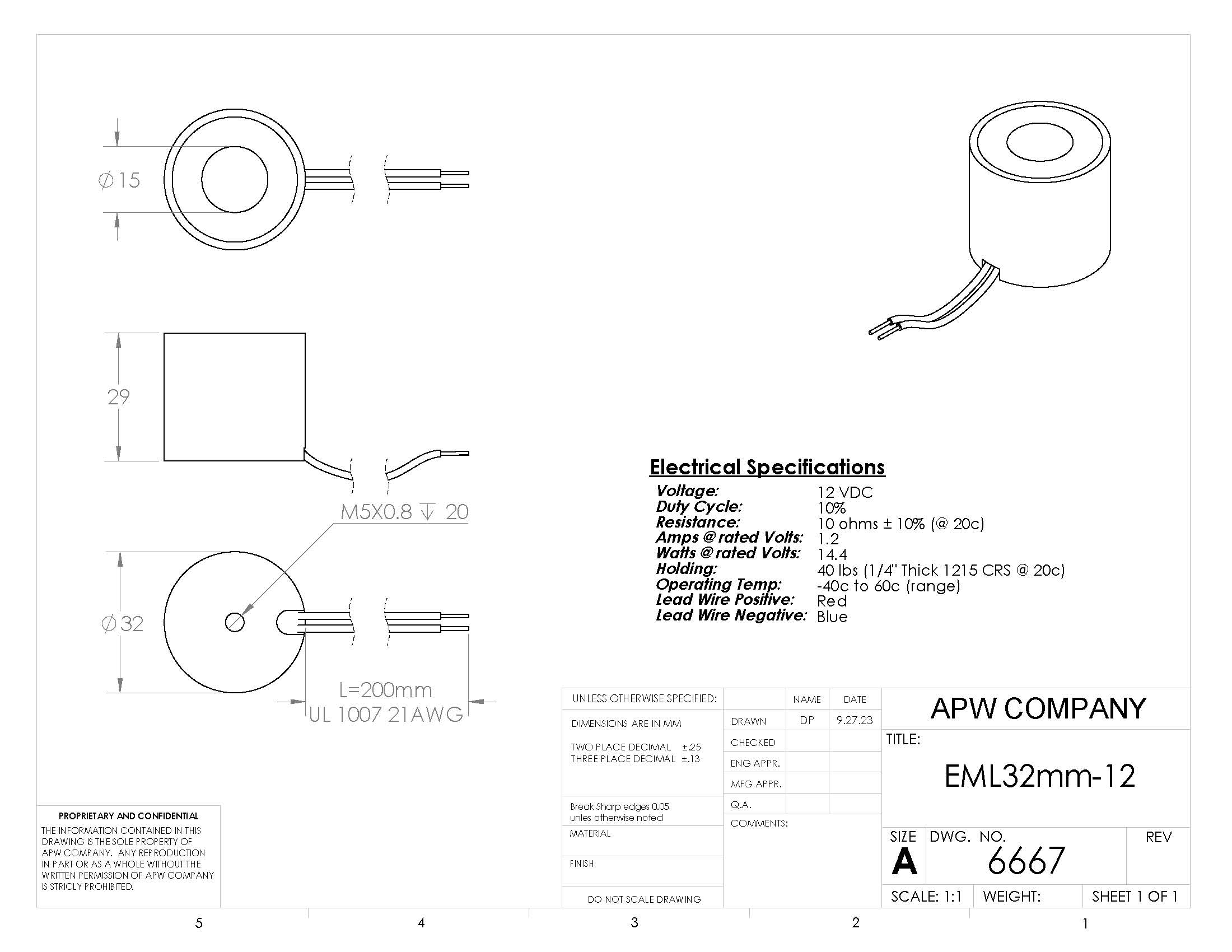

Specifications

Length (mm)
29
Length (in)
1.14
Outer Diameter (mm)
32
Holding Force (Lbs.)
40
Ohms
10.0
Watts
14.4
Amps
1.20
Duty
Intermittent
Current
DC
Voltage
12
Encapsulation
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Metric Tapped M5
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
UL 1007
Lead Wire Length (mm)
200

Description

The EML32mm-12 Round Permanent Electromagnet is a high-quality and precision-made product designed to operate on 12 volts DC. With a diameter of 32 mm and a holding capacity of 40 lbs, this electromagnet is ideal for use in a range of applications, such as material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.
