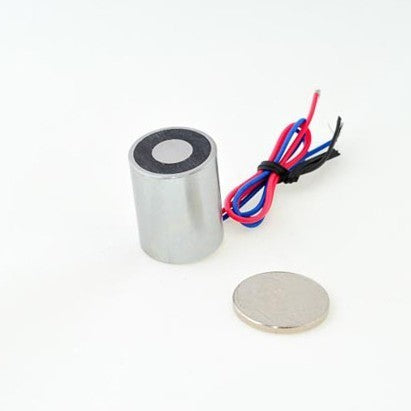

EML20mm-24 - Round Permanent Electromagnet 20 mm Dia. 24 volts DC - Holding 10.12 lbs. image 0

EML20mm-24 - Round Permanent Electromagnet 20 mm Dia. 24 volts DC - Holding 10.12 lbs.

$28.60
Skip to product information
EML20mm-24 - Round Permanent Electromagnet 20 mm Dia. 24 volts DC - Holding 10.12 lbs. image 0
SKU: 6676

EML20mm-24 - Round Permanent Electromagnet 20 mm Dia. 24 volts DC - Holding 10.12 lbs.

$28.60
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

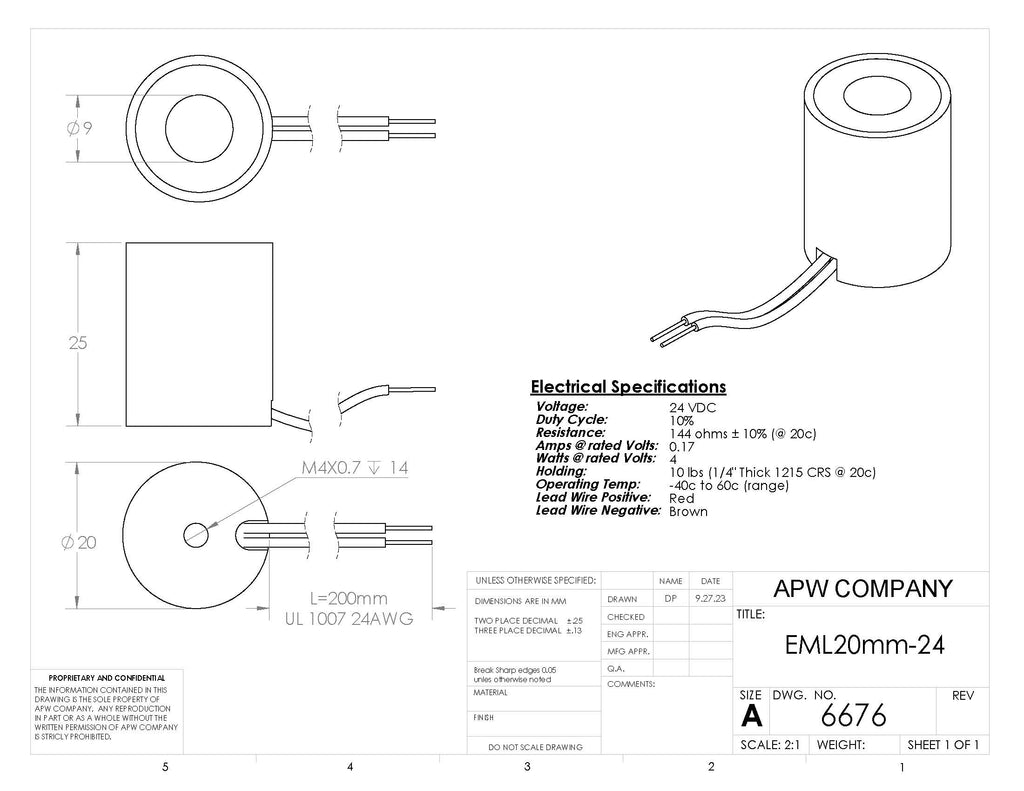

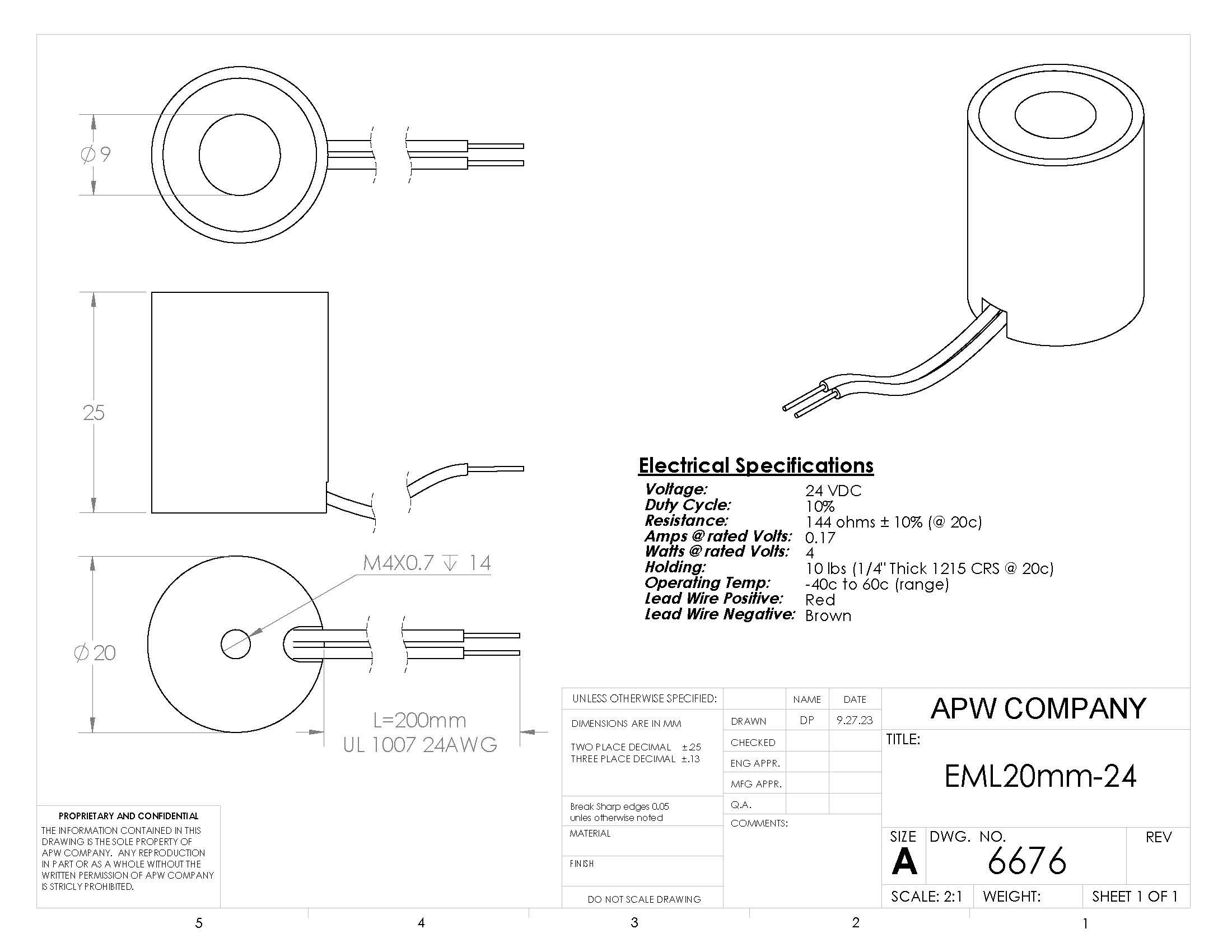

Specifications

Length (mm)
25
Length (in)
1
Outer Diameter (mm)
20
Holding Force (Lbs.)
10.12
Ohms
141.18
Watts
4.08
Amps
0.17
Duty
Intermittent
Current
DC
Voltage
24
Encapsulation
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Metric Tapped M4
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
UL 1007
Lead Wire Length (mm)
200

Description

The EML20mm-24 Round Permanent Electromagnet is a high-quality, precision-made product designed to operate on 24 volts DC. With a diameter of 20 mm and a holding capacity of 10.12 lbs, this electromagnet is ideal for use in a range of applications, such as material handling, magnetic separation, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers seeking a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in various settings.
