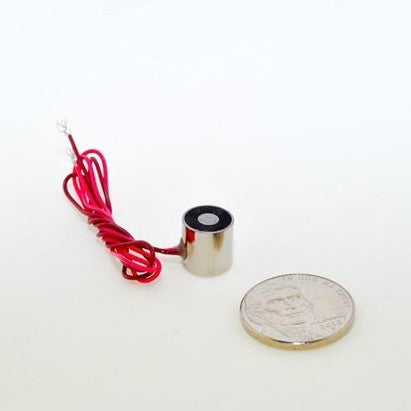

EML10mm-24 - Round Permanent Electromagnet 10 mm Dia. 24 volts DC - Holding 0.67 lbs. image 0

EML10mm-24 - Round Permanent Electromagnet 10 mm Dia. 24 volts DC - Holding 0.67 lbs.

$31.68
Skip to product information
EML10mm-24 - Round Permanent Electromagnet 10 mm Dia. 24 volts DC - Holding 0.67 lbs. image 0
SKU: 6687

EML10mm-24 - Round Permanent Electromagnet 10 mm Dia. 24 volts DC - Holding 0.67 lbs.

$31.68
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Length (mm)
10
Length (in)
0.4
Outer Diameter (mm)
10
Holding Force (Lbs.)
0.67
Ohms
184.62
Watts
3.12
Amps
0.13
Duty
Intermittent
Current
DC
Voltage
24
Encapsulation
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Metric Tapped M2
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
26
Lead Wire Type
UL 1007
Lead Wire Length (mm)
200

Description

The EML10mm-24 Round Permanent Electromagnet is a high-quality, precision-made product designed to operate on 24 volts DC. With a diameter of 10 mm and a holding capacity of 0.67 lbs, this electromagnet is ideal for use in applications such as magnetic separation, positioning, and clamping. The product is manufactured with the highest level of precision and quality to ensure reliable performance and durability. It is an excellent choice for mechanical and electrical engineers looking for a robust and efficient solution for their electromagnetic needs, and will perform exceptionally well in a variety of settings.
