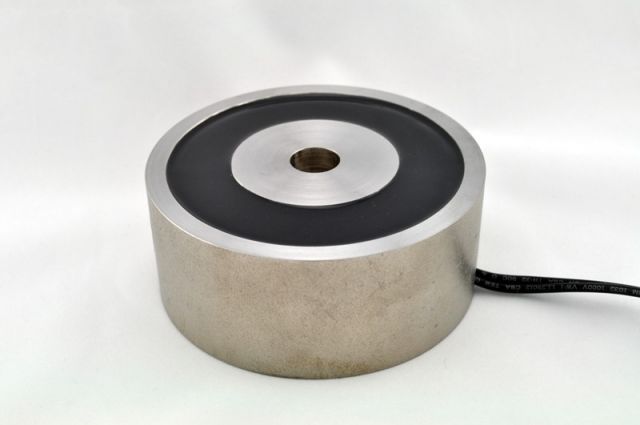

EM400-6-212 – Round Electromagnet 4 inch Dia. 6 VDC – Holding 800 lbs. image 0

EM400-6-212 – Round Electromagnet 4 inch Dia. 6 VDC – Holding 800 lbs.

$138.74
Skip to product information
EM400-6-212 – Round Electromagnet 4 inch Dia. 6 VDC – Holding 800 lbs. image 0
SKU: 4840

EM400-6-212 – Round Electromagnet 4 inch Dia. 6 VDC – Holding 800 lbs.

$138.74
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
41.91
Height (in)
1.65
Outer Diameter (mm)
101.6
Outer Diameter (in)
4
Holding Force (Lbs.)
800
Ohms
1.8
Watts
19.98
Amps
3.33
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
3/8-16 x 1 3/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM400-6-212 is a high-quality round electromagnet engineered to meet the rigorous demands of mechanical and electrical engineering applications. It produces an extremely strong magnetic field when energized with 6 volts DC, capable of holding up to an impressive 800 lbs. With a diameter of 4 inches, it is suitable for a range of applications requiring a large holding capacity. This electromagnet is manufactured to the highest standards, ensuring consistent and reliable performance. Typical applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-6-212 is a dependable choice for any engineering project requiring a powerful and efficient electromagnet.
