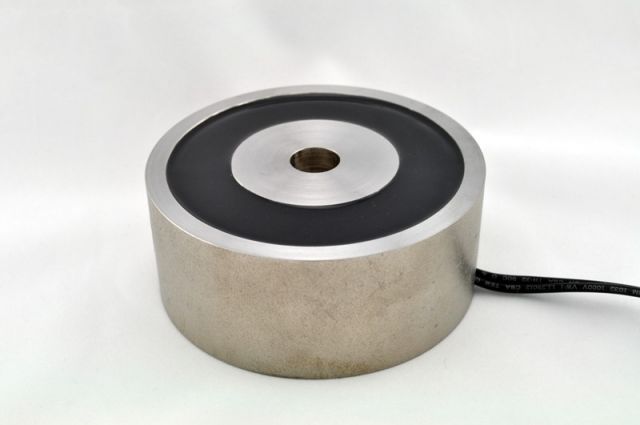

EM400-24-112 - Round Electromagnet 4 inch Dia. 24 volts DC - Holding 480 lbs. image 0

EM400-24-112 - Round Electromagnet 4 inch Dia. 24 volts DC - Holding 480 lbs.

$138.74
Skip to product information
EM400-24-112 - Round Electromagnet 4 inch Dia. 24 volts DC - Holding 480 lbs. image 0
SKU: 5557

EM400-24-112 - Round Electromagnet 4 inch Dia. 24 volts DC - Holding 480 lbs.

$138.74
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

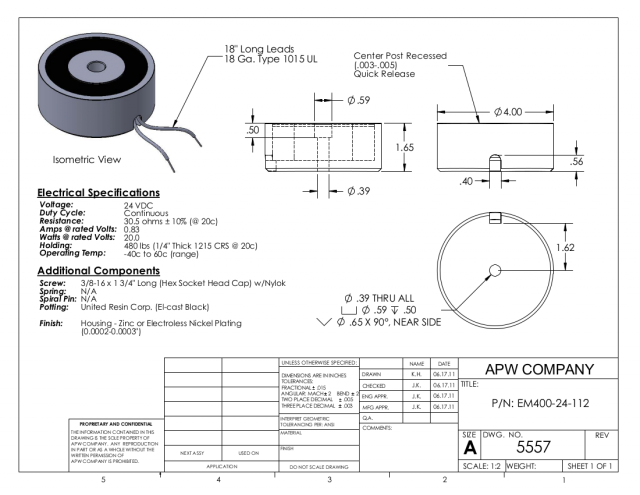

Specifications

Height (mm)
41.91
Height (in)
1.65
Outer Diameter (mm)
101.6
Outer Diameter (in)
4
Holding Force (Lbs.)
480
Ohms
28.92
Watts
19.92
Amps
0.83
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
3/8-16 x 1 3/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM400-24-112 is a high-performance round electromagnet designed to meet the demanding requirements of mechanical and electrical engineering applications. Its 4-inch diameter produces an extremely strong magnetic field when supplied with 24 volts DC, capable of holding up to 480 lbs. The product is manufactured with precision and attention to detail, ensuring reliable and consistent performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-24-112 is an excellent choice for engineering projects requiring a dependable and efficient electromagnet for heavy-duty operations.
