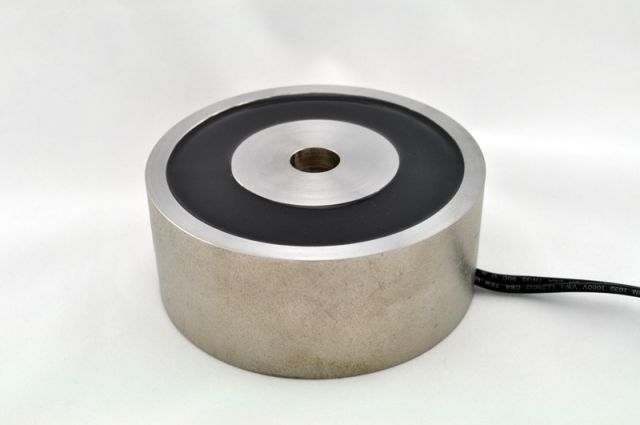

EM400-115ac-212 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 800 lbs. image 0

EM400-115ac-212 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 800 lbs.

$146.15
Skip to product information
EM400-115ac-212 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 800 lbs. image 0
SKU: 4834

EM400-115ac-212 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 800 lbs.

$146.15
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
41.91
Height (in)
1.65
Outer Diameter (mm)
101.6
Outer Diameter (in)
4
Holding Force (Lbs.)
800
Ohms
676.47
Watts
19.55
Amps
0.17
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
3/8-16 x 1 3/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM400-115ac-212 is a high-performance round electromagnet engineered to meet the rigorous demands of mechanical and electrical engineering applications. Its 4-inch diameter produces a powerful magnetic field when supplied with 115 volts AC, capable of holding up to 800 lbs. This electromagnet is manufactured with meticulous attention to detail, ensuring consistent and reliable performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-115ac-212 is a dependable choice for engineering projects requiring a high-quality and efficient electromagnet for heavy-duty operations at AC voltage levels with a large holding capacity.
