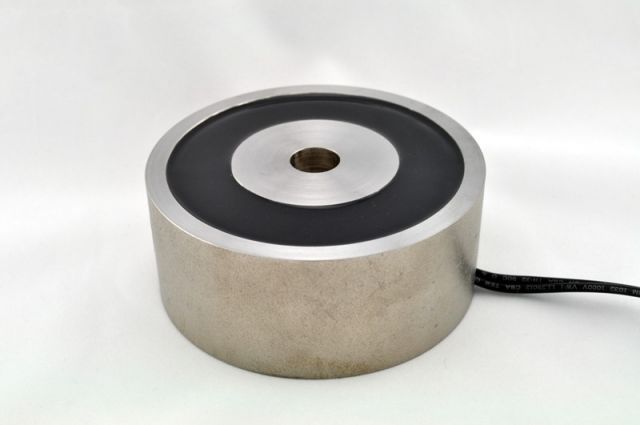

EM400-115ac-112 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 480 lbs. image 0

EM400-115ac-112 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 480 lbs.

$146.15
Skip to product information
EM400-115ac-112 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 480 lbs. image 0
SKU: 5554

EM400-115ac-112 - Round Electromagnet 4 inch Dia. 115 volts AC - Holding 480 lbs.

$146.15
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

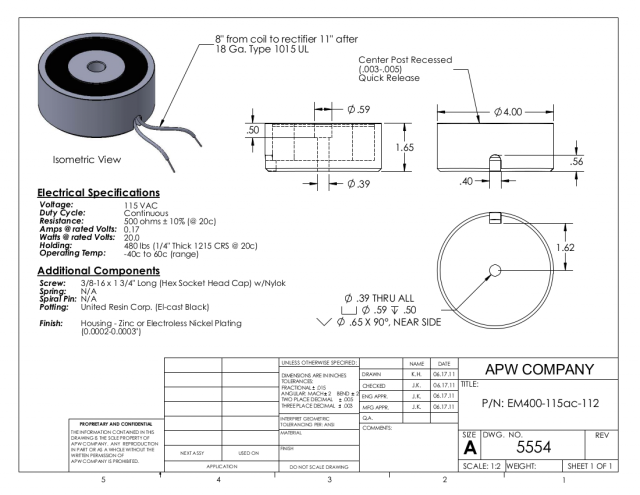

Specifications

Height (mm)
41.91
Height (in)
1.65
Outer Diameter (mm)
101.6
Outer Diameter (in)
4
Holding Force (Lbs.)
480
Ohms
676.47
Watts
19.55
Amps
0.17
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
3/8-16 x 1 3/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM400-115ac-112 is a top-of-the-line round electromagnet designed to meet the stringent requirements of mechanical and electrical engineering applications. Its 4-inch diameter produces a powerful magnetic field when supplied with 115 volts AC, capable of holding up to 480 lbs. The product is manufactured with precision and care, ensuring reliable and consistent performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM400-115ac-112 is an exceptional choice for engineering projects requiring a high-quality and efficient electromagnet for heavy-duty operations at AC voltage levels.
