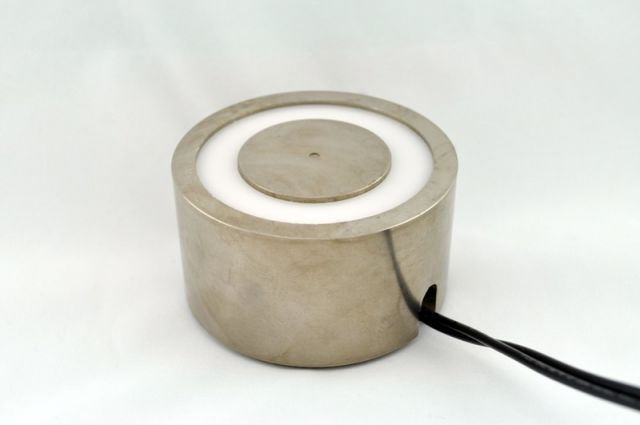

EM350-115ac-212 - Round Electromagnet 3.5 inch Dia. 115AC volts AC - Holding 600 lbs. image 0

EM350-115ac-212 - Round Electromagnet 3.5 inch Dia. 115AC volts AC - Holding 600 lbs.

$129.25
Skip to product information
EM350-115ac-212 - Round Electromagnet 3.5 inch Dia. 115AC volts AC - Holding 600 lbs. image 0
SKU: 6612

EM350-115ac-212 - Round Electromagnet 3.5 inch Dia. 115AC volts AC - Holding 600 lbs.

$129.25

3 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
50.8
Height (in)
2
Outer Diameter (mm)
88.9
Outer Diameter (in)
3.5
Holding Force (Lbs.)
600
Ohms
198.28
Watts
66.7
Amps
0.58
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Tapped 1/4-20 2 pl.
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM350-115ac-212 is a high-quality round electromagnet designed for demanding mechanical and electrical engineering applications. Its 3.5-inch diameter produces a powerful magnetic field when supplied with 115 volts AC, capable of holding up to 600 lbs. This electromagnet is manufactured with meticulous attention to detail, ensuring reliable and consistent performance. Its applications include but are not limited to lifting equipment, sorting machinery, and magnetic clamping systems. EM350-115ac-212 is an ideal choice for engineering projects requiring a high-quality and efficient electromagnet for heavy-duty operations at AC voltage levels with a large holding capacity.
