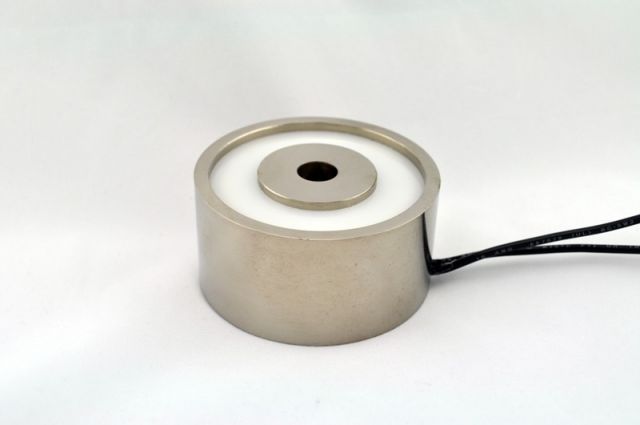

EM300-6-222 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs. image 0

EM300-6-222 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs.

$80.74
Skip to product information
EM300-6-222 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs. image 0
SKU: 6287

EM300-6-222 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs.

$80.74
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

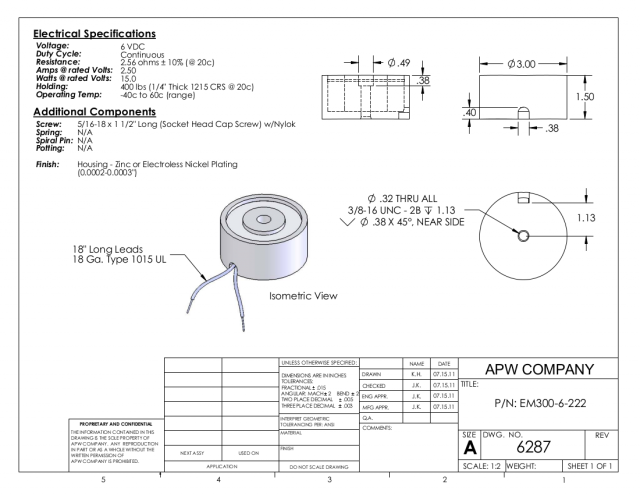

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
400
Ohms
2.4
Watts
15.0
Amps
2.5
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-6-222 is a high-powered round electromagnet with a 3 inch diameter and a holding capacity of 400 lbs. It is designed for use with 6 volts DC and is a high-quality, precision-made product. This electromagnet has numerous applications, such as in automated sorting and assembly systems, magnetic lifting and handling, and industrial machinery. With its robust construction and powerful magnetic field, the EM300-6-222 is ideal for applications requiring strong and reliable magnetic holding force.
