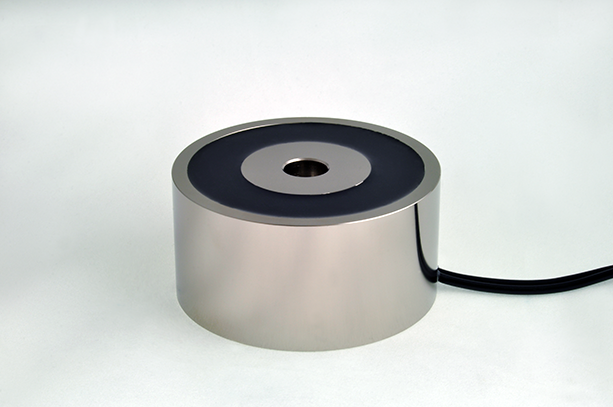

EM300-6-212 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs. image 0

EM300-6-212 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs.

$95.80
Skip to product information
EM300-6-212 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs. image 0
SKU: 4786

EM300-6-212 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 400 lbs.

$95.80
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

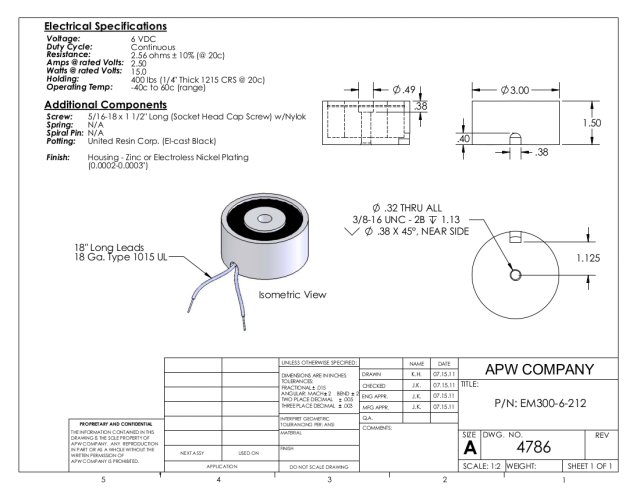

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
400
Ohms
2.4
Watts
15.0
Amps
2.5
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-6-212 Round Electromagnet with a 3 inch diameter and a 6 volts DC power supply is a high-quality and precision-made product designed for mechanical and electrical engineers. It can hold up to 400 lbs, and is suitable for a wide range of industrial applications, such as material handling, robotics, and automation. With its durable construction and reliable performance, the EM300-6-212 is an ideal solution for electromagnet-based systems that require robust and powerful holding capabilities.
