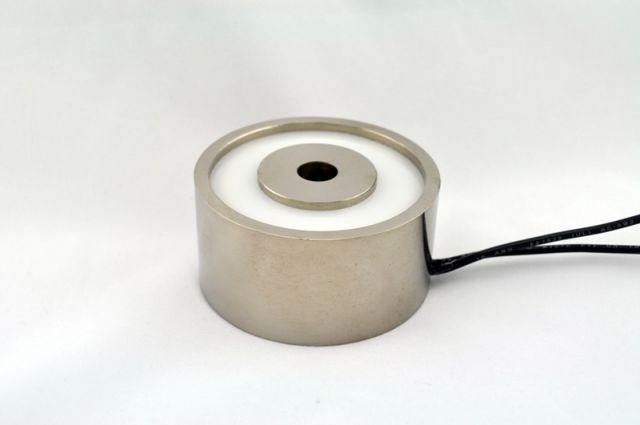

EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs. image 0

EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs.

$83.04
Skip to product information
EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs. image 0
  • EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs. image 0

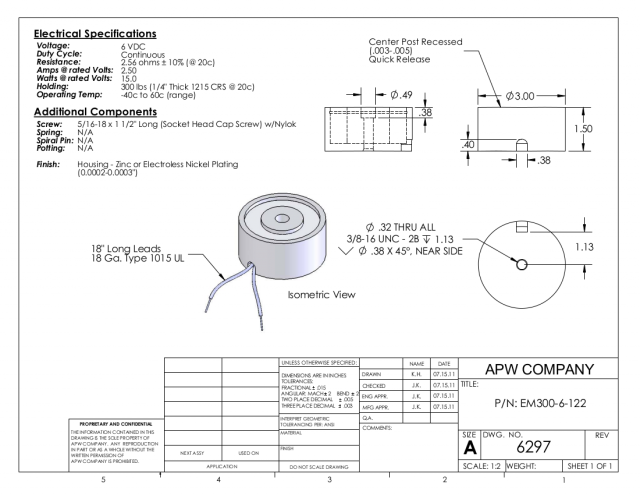

  • EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs. image 1
EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs.
SKU: 6297

EM300-6-122 - Round Electromagnet 3 inch Dia. 6 volts DC - Holding 300 lbs.

$83.04
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
300
Ohms
2.4
Watts
15.0
Amps
2.5
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-6-122 Round Electromagnet is a high-quality, precision-made product that can hold up to 300 lbs. The electromagnet has a 3-inch diameter and requires 6 volts DC to operate. This electromagnet can be used in a variety of applications where holding and releasing force is required, such as in industrial automation, robotics, and door locking systems. The design of the electromagnet ensures that it is highly reliable and long-lasting, making it an ideal choice for engineers looking for a high-performance electromagnet.

SKU: 6297
Category: Electromagnets , Round Electromagnets
Tags: 2.5 , 3 inch Dia Magnet , 300 , 300 lbs Magnet , 5/16-18 x 1 1/2 , 6 , 6 volts DC Magnet , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM300-6-122 , Holding Magnet , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
