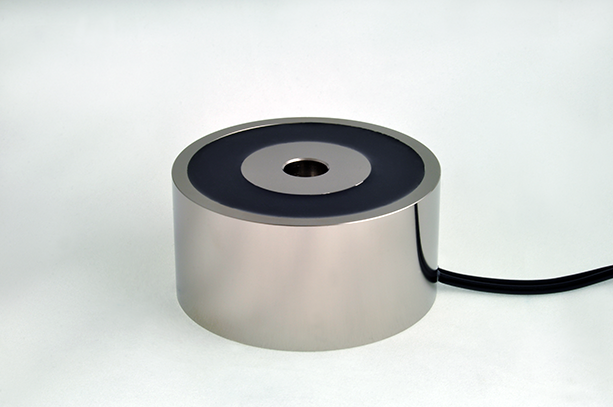

EM300-3-212 - Round Electromagnet 3 inch Dia. 3 volts DC - Holding 400 lbs. image 0

EM300-3-212 - Round Electromagnet 3 inch Dia. 3 volts DC - Holding 400 lbs.

$95.80
Skip to product information
EM300-3-212 - Round Electromagnet 3 inch Dia. 3 volts DC - Holding 400 lbs. image 0
SKU: 4658

EM300-3-212 - Round Electromagnet 3 inch Dia. 3 volts DC - Holding 400 lbs.

$95.80
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
400
Ohms
0.6
Watts
15.0
Amps
5
Duty
Continuous
Current
DC
Voltage
3
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-3-212 is a high-quality, precision-made round electromagnet with a 3-inch diameter, designed to operate on 3 volts DC and capable of holding up to 400 lbs. Its impressive holding capacity makes it ideal for use in applications where heavy loads need to be lifted or moved, such as in automated manufacturing or material handling systems. The electromagnet is engineered to provide reliable and efficient operation in demanding environments and is a testament to the superior quality of our product.
