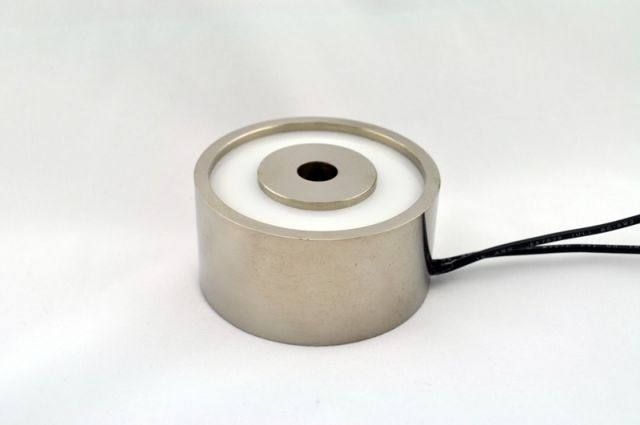

EM300-24-122 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs. image 0

EM300-24-122 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs.

$83.04
Skip to product information
EM300-24-122 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs. image 0
SKU: 6295

EM300-24-122 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs.

$83.04
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

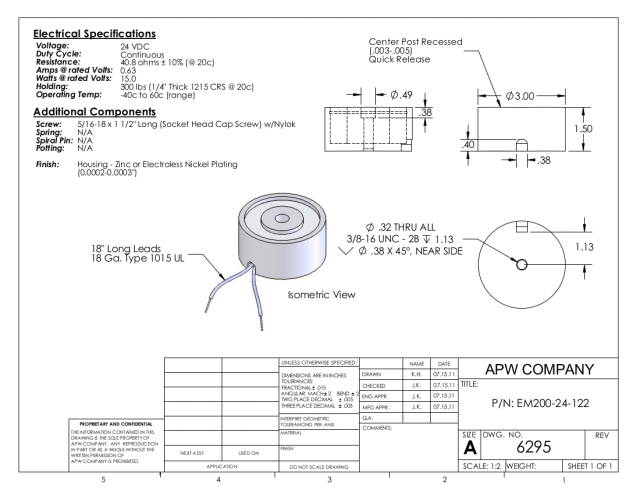

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
300
Ohms
38.71
Watts
14.88
Amps
0.62
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-24-122 Round Electromagnet is a high-quality, precision-made product that provides exceptional holding force of up to 300 lbs. Designed for use in mechanical and electrical applications, this 3-inch diameter electromagnet is engineered to work with a 24-volt DC power source. The unit is constructed with superior materials and advanced manufacturing processes to ensure reliable, long-lasting performance. Electromagnets are used in a wide range of applications, including material handling, robotics, industrial automation, and security systems, making the EM300-24-122 an ideal choice for professionals seeking a powerful and dependable electromagnet solution.
