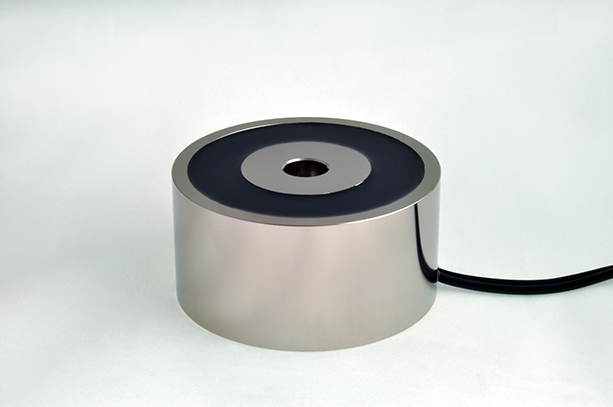

EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs. image 0

EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs.

$95.80
Skip to product information
EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs. image 0
  • EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs. image 0
  • EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs. image 1
EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs.
SKU: 5550

EM300-24-112 - Round Electromagnet 3 inch Dia. 24 volts DC - Holding 300 lbs.

$95.80
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

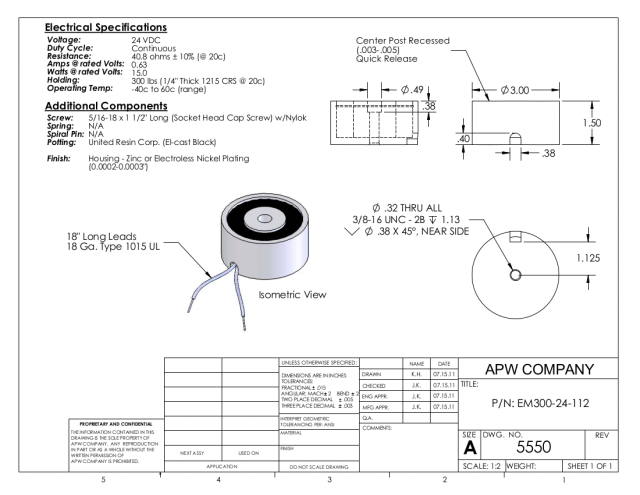

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
300
Ohms
38.71
Watts
14.88
Amps
0.62
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-24-112 is a high quality round electromagnet with a 3 inch diameter, capable of holding up to 300 lbs. It operates on 24 volts DC and is precision made for reliable and efficient performance. The electromagnet can be used in various applications including material handling, robotics, and automation. The high holding force makes it suitable for heavy duty applications where strong holding force is required. Its compact design and reliable performance make it a great choice for engineers looking for a high quality electromagnet solution.

SKU: 5550
Category: Electromagnets , Round Electromagnets
Tags: 0.62 , 24 , 24V DC Magnet , 3 inch Magnet , 300 , 300 lbs Magnet , 5/16-18 x 1 1/2 , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM300-24-112 , Holding Magnet , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
