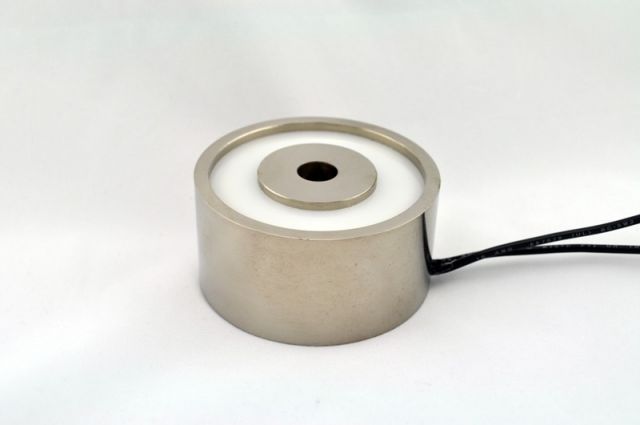

EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs. image 0

EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs.

$88.11
Skip to product information
EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs. image 0
  • EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs. image 0
  • EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs. image 1
EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs.
SKU: 6281

EM300-115AC-222 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 400 lbs.

$88.11
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

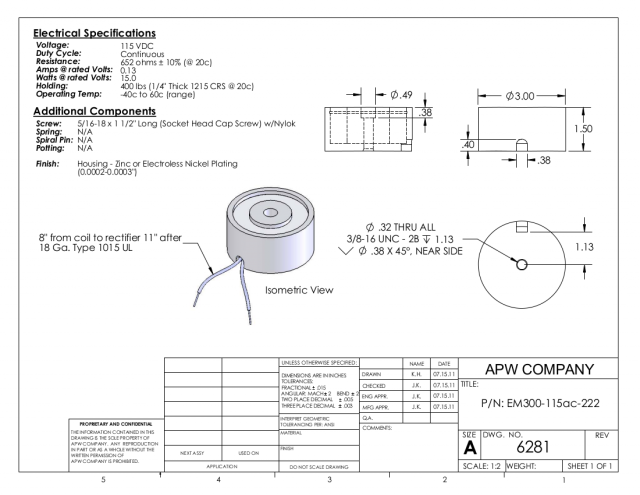

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
400
Ohms
884.62
Watts
14.95
Amps
0.13
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM300-115AC-222 Round Electromagnet is a high-quality, precision-made product designed for a variety of applications where strong holding force is required. With a 3 inch diameter, 115 volts AC, and a holding capacity of 400 lbs, this electromagnet is suitable for a range of industrial, automotive, and scientific applications. It is well-suited for use in lifting and separating ferrous materials, as well as in robotic and automated assembly processes. The EM300-115AC-222 offers reliable performance and is a dependable solution for your electromagnet needs.

SKU: 6281
Category: Electromagnets , Round Electromagnets
Tags: 0.13 , 115 , 115V AC , 3 inch Diameter , 400 , 400 lbs. Holding , 5/16-18 x 1 1/2 , AC , Continuous , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM300 , Industrial Magnet , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt
