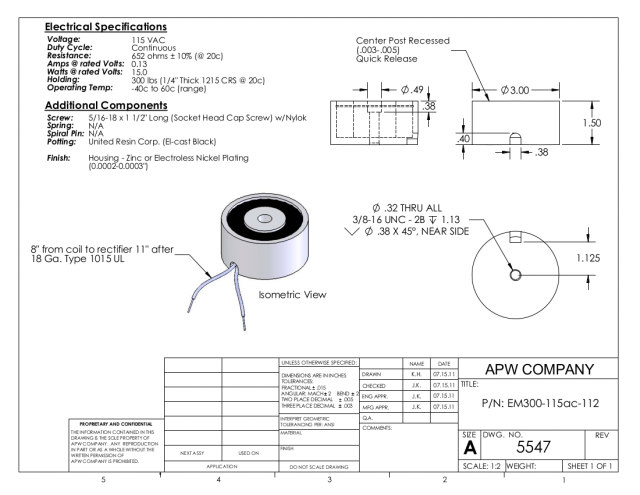

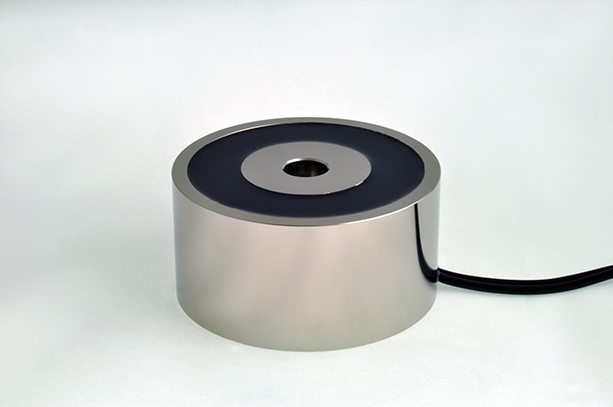

EM300-115ac-112 - Round Electromagnet 3 inch Dia. 115 volts AC - Holding 300 lbs.
$108.30
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Specifications
Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
300
Ohms
884.62
Watts
14.95
Amps
0.13
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2
