EM300-110-212 - Round Electromagnet 3 inch Dia. 110 volts DC - Holding 400 lbs. image 0

EM300-110-212 - Round Electromagnet 3 inch Dia. 110 volts DC - Holding 400 lbs.

$95.80
Skip to product information
EM300-110-212 - Round Electromagnet 3 inch Dia. 110 volts DC - Holding 400 lbs. image 0
SKU: 4783

EM300-110-212 - Round Electromagnet 3 inch Dia. 110 volts DC - Holding 400 lbs.

$95.80
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

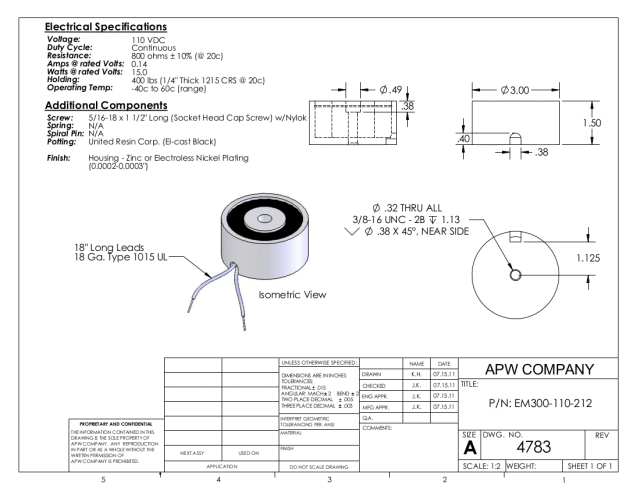

Specifications

Height (mm)
38.1
Height (in)
1.5
Outer Diameter (mm)
76.2
Outer Diameter (in)
3
Holding Force (Lbs.)
400
Ohms
846.15
Watts
14.3
Amps
0.13
Duty
Continuous
Current
DC
Voltage
110
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
5/16-18 x 1 1/2
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

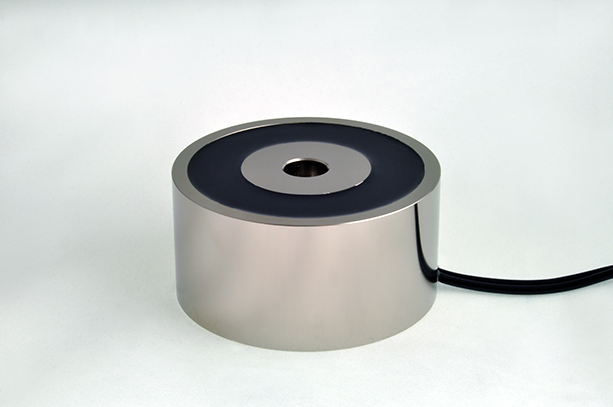

The EM300-110-212 is a high-quality round electromagnet with a 3 inch diameter that operates at 110 volts DC and can hold up to 400 lbs. This precision-made product is ideal for use in various applications where electromagnets are required, such as in manufacturing, automotive, and aerospace industries. Its robust design and reliable performance make it suitable for heavy-duty applications that require high holding force. The EM300-110-212 is designed to provide optimal performance, durability, and efficiency, ensuring long-lasting and trouble-free operation.
