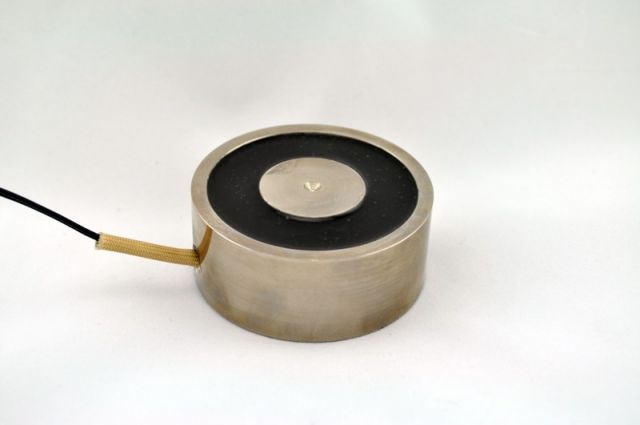

EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs. image 0

EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs.

$63.49
Skip to product information
EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs. image 0
  • EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs. image 0
  • EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs. image 1
EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs.
SKU: 6499

EM237-24-112 - Round Electromagnet 2.37 inch Dia. 24 volts DC - Holding 170 lbs.

$63.49
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
24.89
Height (in)
0.98
Outer Diameter (mm)
60.2
Outer Diameter (in)
2.37
Holding Force (Lbs.)
170
Ohms
104.35
Watts
5.52
Amps
0.23
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Tapped M8
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM237-24-112 is a high-quality round electromagnet with a 2.37 inch diameter, designed for holding applications that require a maximum load of 170 lbs. The product is manufactured with precision and is perfect for use in various applications where electromagnets are needed. It operates on a 24 volts DC supply and can hold the load securely in place. The EM237-24-112 electromagnet is suitable for use in industries such as automation, robotics, and manufacturing, where a reliable holding force is required for positioning and clamping tasks.

SKU: 6499
Category: Electromagnets , Round Electromagnets
Tags: 0.23 , 170 , 2.37 inch Dia. , 24 , 24 volts DC , Continuous , DC , Electromagnetic Coil , Electromagnets , Electromagnets > Round Electromagnets , EM237-24-112 , Holding 170 lbs. , Magnetic Attraction , Magnetic Field , Magnetic Force , Magnetism , No , Round Electromagnet , Round Electromagnets , Tapped M8 , Tapped Rear Threaded , Yes
