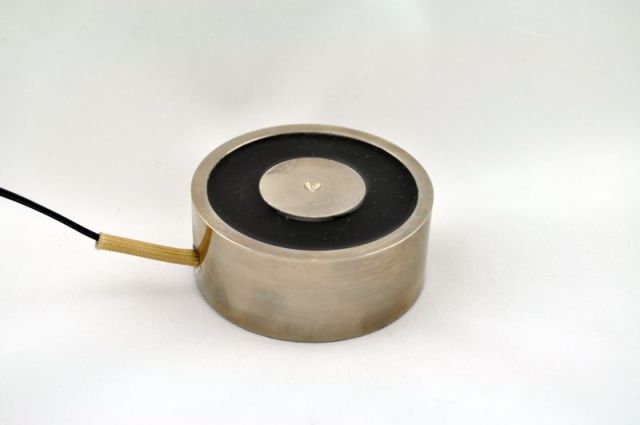

EM237-12-112 - Round Electromagnet 2.37 inch Dia. 12 volts DC - Holding 170 lbs. image 0

EM237-12-112 - Round Electromagnet 2.37 inch Dia. 12 volts DC - Holding 170 lbs.

$63.49
Skip to product information
EM237-12-112 - Round Electromagnet 2.37 inch Dia. 12 volts DC - Holding 170 lbs. image 0
SKU: 6498

EM237-12-112 - Round Electromagnet 2.37 inch Dia. 12 volts DC - Holding 170 lbs.

$63.49

8 in stock

Quantity
Discount (%)
Price

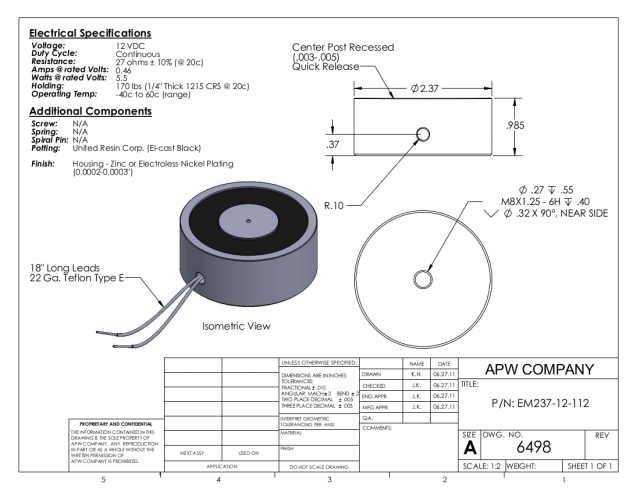

Specifications

Height (mm)
24.89
Height (in)
0.98
Outer Diameter (mm)
60.2
Outer Diameter (in)
2.37
Holding Force (Lbs.)
170
Ohms
26.09
Watts
5.52
Amps
0.46
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Tapped M8
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
457.2

Description

The EM237-12-112 is a round electromagnet with a 2.37 inch diameter, capable of holding 170 lbs. with 12 volts DC input. This high quality, precision made product has various applications in mechanical and electrical engineering, including automation, robotics, and material handling. Its powerful holding force makes it suitable for heavy duty applications that require strong magnetic force, while its compact size allows for easy integration into designs where space is limited. The EM237-12-112 is a reliable and effective solution for applications requiring a durable and efficient electromagnet.
