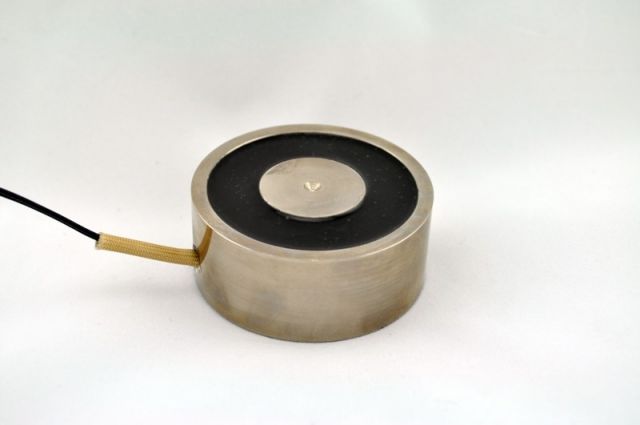

EM237-115ac-112 - Round Electromagnet 2.37 inch Dia. 115 volts AC - Holding 170 lbs. image 0

EM237-115ac-112 - Round Electromagnet 2.37 inch Dia. 115 volts AC - Holding 170 lbs.

$77.21
Skip to product information
EM237-115ac-112 - Round Electromagnet 2.37 inch Dia. 115 volts AC - Holding 170 lbs. image 0
SKU: 6500

EM237-115ac-112 - Round Electromagnet 2.37 inch Dia. 115 volts AC - Holding 170 lbs.

$77.21

3 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
24.89
Height (in)
0.98
Outer Diameter (mm)
60.2
Outer Diameter (in)
2.37
Holding Force (Lbs.)
170
Ohms
2300.0
Watts
5.75
Amps
0.05
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Tapped M8
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
22
Lead Wire Type
TFE
Lead Wire Length (mm)
482.6

Description

The EM237-115ac-112 is a high quality, precision-made round electromagnet with a 2.37 inch diameter that operates at 115 volts AC and can hold up to 170 lbs. This electromagnet is designed for applications where a strong and reliable magnetic holding force is required, such as in industrial automation, robotics, and material handling systems. Its compact size and efficient operation make it an excellent choice for a wide range of applications. With its superior performance and durability, the EM237-115ac-112 is a reliable and effective solution for your electromagnet needs.
