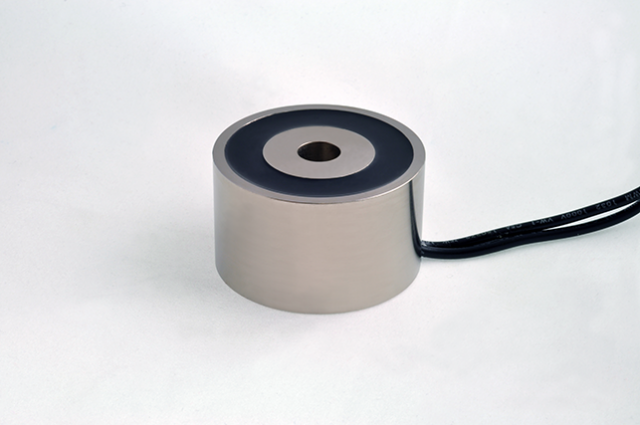

EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs. image 0

EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs.

$62.47
Skip to product information
EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs. image 0
  • EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs. image 0
  • EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs. image 1
EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs.
SKU: 5300

EM200-90-212 - Round Electromagnet 2 inch Dia. 90 volts DC - Holding 140 lbs.

$62.47
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
1285.71
Watts
6.3
Amps
0.07
Duty
Continuous
Current
DC
Voltage
90
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-90-212 is a high quality, precision-made round electromagnet with a 2 inch diameter and a holding strength of 140 lbs. This model is designed for use with 90 volts DC power supply and is ideal for a range of mechanical and industrial applications, including manufacturing processes, transportation systems, and material handling equipment. Its robust construction and reliable performance make it an excellent choice for demanding environments. Trust in the EM200-90-212 for your heavy-duty electromagnet needs.

SKU: 5300
Category: Electromagnets , Round Electromagnets
Tags: 0.07 , 1/4-20 x 1 1/4 , 140 , 2 inch Diameter , 90 , 90 Volts DC , Continuous , DC , Electromagnets , Electromagnets > Round Electromagnets , EM200-90-212 , Holding 140 lbs , Magnetic Attraction , Magnetic Field , Magnetic Force , Magnetic Pull , No , Permanent Magnet , Round Electromagnet , Round Electromagnets , Through-Hole w/ Shoulder Bolt , Yes
