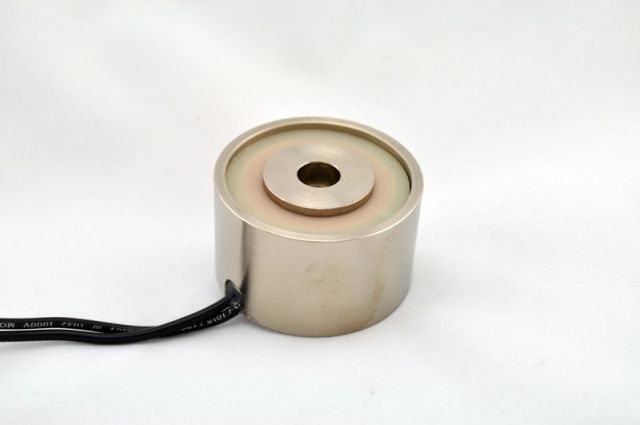

EM200-6-222-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 140 lbs. image 0

EM200-6-222-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 140 lbs.

$41.61
Skip to product information
EM200-6-222-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 140 lbs. image 0
SKU: 6167

EM200-6-222-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 140 lbs.

$41.61
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

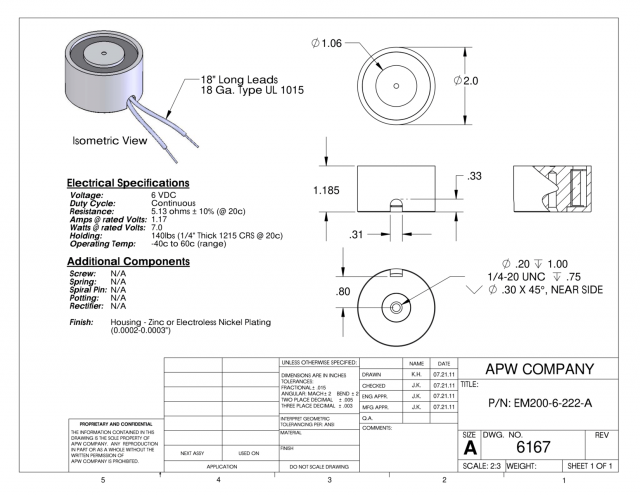

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
5.17
Watts
6.96
Amps
1.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 1/4-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-6-222-A Round Electromagnet is a high-quality, precision-made product designed for use in various applications where electromagnets are required to hold heavy loads of up to 140 lbs. With a 2 inch diameter, this DC-powered electromagnet is capable of holding the load securely in place. Mechanical and electrical engineers can trust the reliability of this product in a wide range of applications, including manufacturing equipment, robotics, and transportation. The low voltage requirement of 6 volts DC makes it suitable for use in low power applications.
