EM200-6-122-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 105 lbs. image 0

EM200-6-122-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 105 lbs.

$41.61
Skip to product information
EM200-6-122-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 105 lbs. image 0
SKU: 6177

EM200-6-122-A - Round Electromagnet 2 inch Dia. 6 volts DC - Holding 105 lbs.

$41.61
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

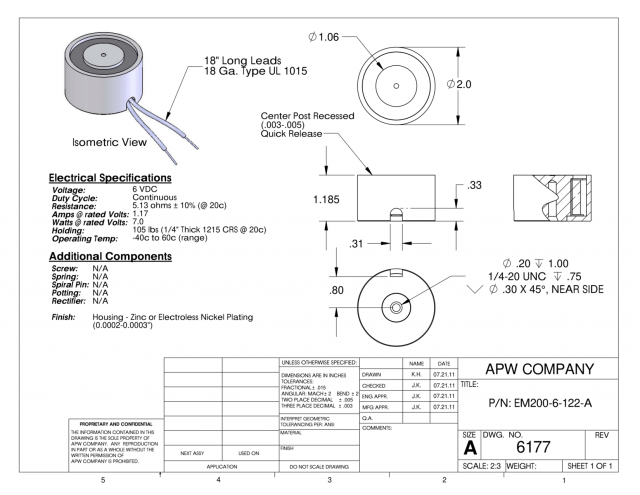

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
105
Ohms
5.17
Watts
6.96
Amps
1.16
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 1/4-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

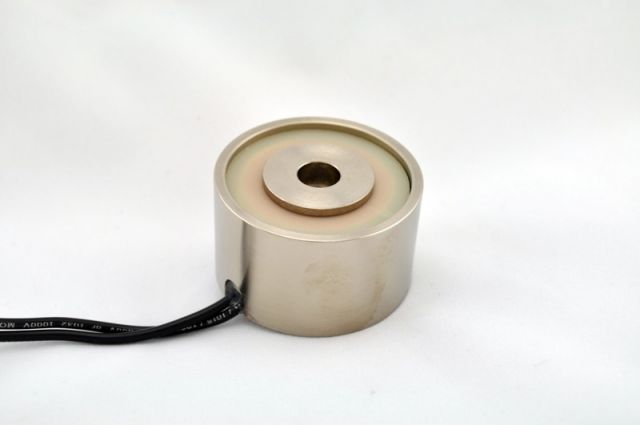

The EM200-6-122-A Round Electromagnet is a precision-made high-quality product with a 2 inch diameter capable of holding up to 105 lbs with 6 volts DC. It is designed for a range of applications such as material handling, metalworking, packaging, and automation. The compact size and powerful holding force of the electromagnet make it ideal for use in tight spaces or where a low voltage power source is preferred. The EM200-6-122-A is an excellent solution for various industrial and manufacturing settings requiring a dependable and efficient electromagnet.
