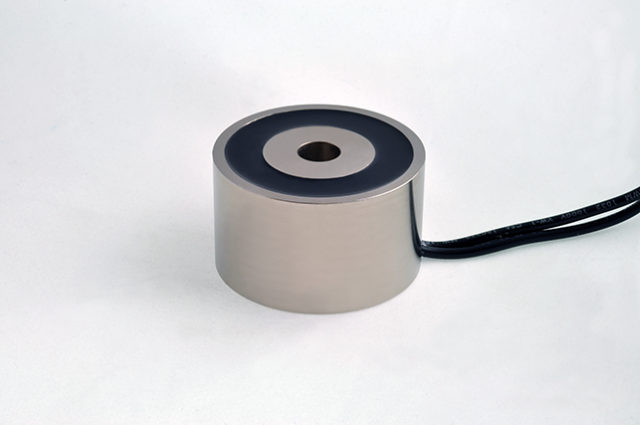

EM200-24H-112-B - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 140 lbs. image 0

EM200-24H-112-B - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 140 lbs.

$109.63
Skip to product information
EM200-24H-112-B - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 140 lbs. image 0
SKU: 6092

EM200-24H-112-B - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 140 lbs.

$109.63
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
40.0
Watts
14.4
Amps
0.6
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM200-24H-112-B is a high-temperature round electromagnet with a 2-inch diameter, capable of holding 140 lbs. This high-quality, precision-made product is designed for applications where extreme temperatures are present. It is engineered to operate reliably in high-temperature environments, such as automotive, aerospace, and industrial applications. The EM200-24H-112-B is a DC-powered electromagnet, which makes it ideal for use in machines that require powerful and durable electromagnets to function. The electromagnet is constructed using high-quality materials, ensuring a long lifespan and dependable performance.
