EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs. image 0

EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs.

$53.20
Skip to product information
EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs. image 0
  • EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs. image 0
  • EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs. image 1
EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs.
SKU: 6011

EM200-24-112 - Round Electromagnet 2 inch Dia. 24 volts DC - Holding 105 lbs.

$53.20
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

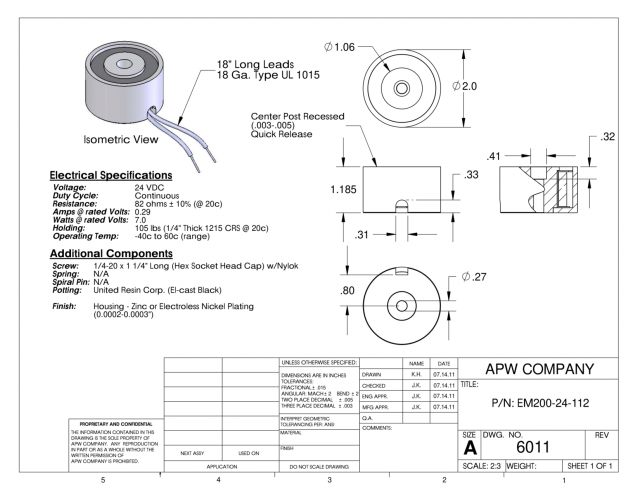

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
105
Ohms
82.76
Watts
6.96
Amps
0.29
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-24-112 is a high-quality, precision-made round electromagnet designed for applications where a strong magnetic field is required. With a holding capacity of 105 lbs. and a diameter of 2 inches, this electromagnet is well-suited for use in a variety of industrial and commercial applications, such as material handling, metalworking, and automotive production. Operating on 24 volts DC, this electromagnet delivers reliable performance and precise control in even the most demanding applications. Its robust construction and advanced features make it a top choice for mechanical and electrical engineers seeking superior quality and performance.

SKU: 6011
Category: Electromagnets , Round Electromagnets
Tags: 0.29 , 1/4-20 x 1 1/4 , 105 , 2 inch Diameter , 24 , 24V DC , Coil , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , Holding 105 lbs , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Electromagnets , Round Magnet , Solenoid , Through-Hole w/ Shoulder Bolt , Yes
