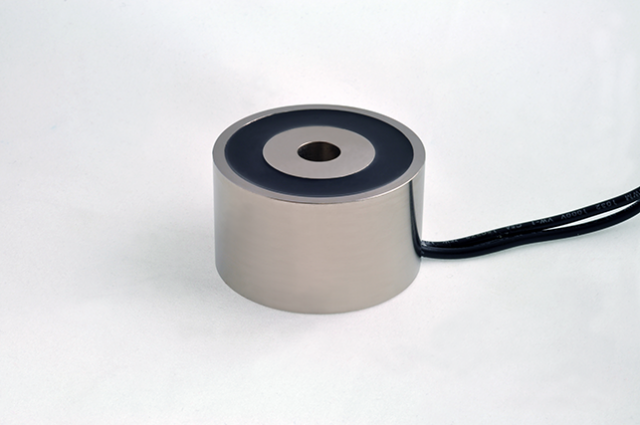

EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs. image 0

EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.

$53.21
Skip to product information
EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs. image 0
  • EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs. image 0

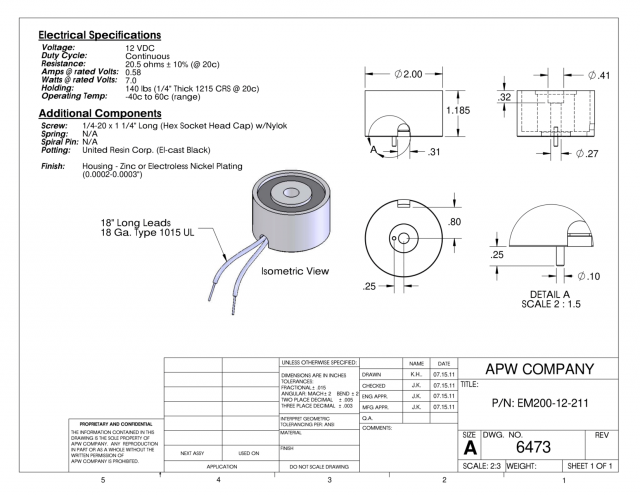

  • EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs. image 1
EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.
SKU: 6473

EM200-12-211 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 140 lbs.

$53.21
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
20.69
Watts
6.96
Amps
0.58
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
Yes
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-12-211 is a precision-made round electromagnet with a 2 inch diameter and a holding capacity of 140 lbs. This high-quality product is powered by 12 volts DC and is designed for use in a range of applications where electromagnets are used, including robotics, automation, and manufacturing. Its reliable and efficient operation makes it ideal for use in demanding environments. Made with exceptional attention to detail, the EM200-12-211 is a dependable and durable solution for all your electromagnet needs.

SKU: 6473
Category: Electromagnets , Round Electromagnets
Tags: 0.58 , 1/4-20 x 1 1/4 , 12 , 12 volts DC , 140 , 2 inch Dia. , Continuous , DC , Electromagnetic Coil , Electromagnets , Electromagnets > Round Electromagnets , EM200-12-211 , Holding 140 lbs , Magnetic Attraction , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Electromagnet , Round Electromagnets , Through-Hole w/ Shoulder Bolt , Yes
