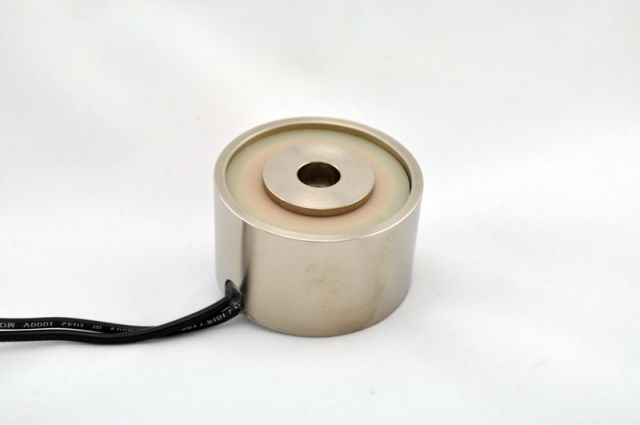

EM200-12-122-A - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs. image 0

EM200-12-122-A - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.

$41.61
Skip to product information
EM200-12-122-A - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs. image 0
SKU: 6176

EM200-12-122-A - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.

$41.61
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
105
Ohms
20.69
Watts
6.96
Amps
0.58
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 1/4-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-12-122-A round electromagnet is a high-quality, precision-made product designed for use in various mechanical and electrical engineering applications. With a 2 inch diameter and holding force of 105 lbs at 12 volts DC, this electromagnet is ideal for use in a variety of applications including automotive, robotics, and aerospace industries. Its compact size and high holding force make it suitable for use in tight spaces where a strong, reliable hold is required. The EM200-12-122-A is a reliable and effective solution for your electromagnet needs.
