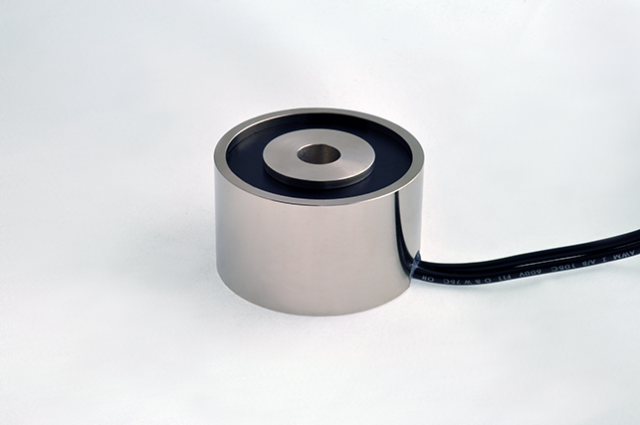

EM200-12-112 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs. image 0

EM200-12-112 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.

$53.21
Skip to product information
EM200-12-112 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs. image 0
SKU: 5408

EM200-12-112 - Round Electromagnet 2 inch Dia. 12 volts DC - Holding 105 lbs.

$53.21
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

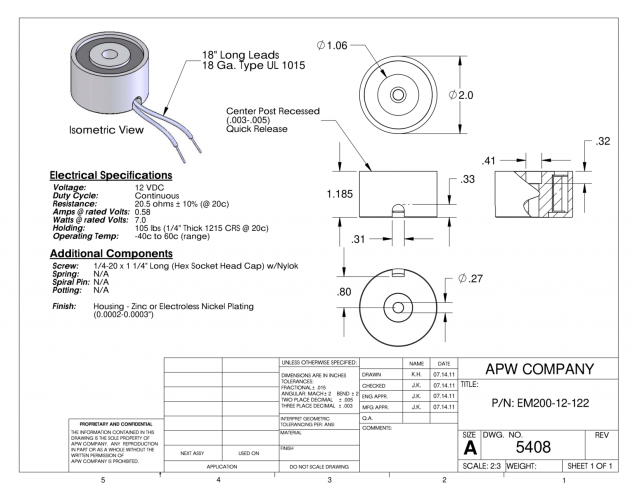

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
105
Ohms
20.69
Watts
6.96
Amps
0.58
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-12-112 Round Electromagnet is a high-quality precision-made product capable of holding up to 105 lbs. with a 2 inch diameter and 12 volts DC. This electromagnet is designed for use in a wide range of applications, such as industrial automation, robotics, and magnetic separation. Its compact design and high holding force make it an ideal choice for space-constrained applications where a powerful magnet is required. The product is engineered and tested to meet the highest industry standards, ensuring reliable performance in the toughest environments.
