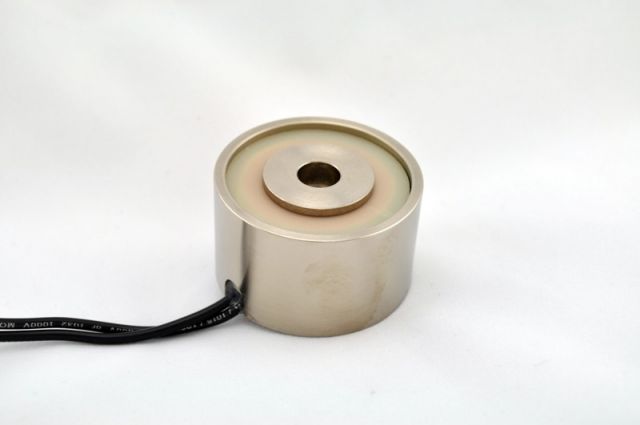

EM200-115ac-222 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs. image 0

EM200-115ac-222 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.

$61.72
Skip to product information
EM200-115ac-222 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs. image 0
SKU: 6062

EM200-115ac-222 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.

$61.72
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
1916.67
Watts
6.9
Amps
0.06
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-115ac-222 is a round electromagnet with a diameter of 2 inches and is capable of holding up to 140 lbs. This precision-made product operates with 115 volts AC and is suitable for various applications where electromagnets are used, such as lifting, clamping, and sorting. The high-quality construction ensures long-lasting durability and reliability. With its powerful holding capacity and robust design, the EM200-115ac-222 is an ideal choice for mechanical and electrical engineers seeking a dependable and efficient solution for their electromagnet needs.
