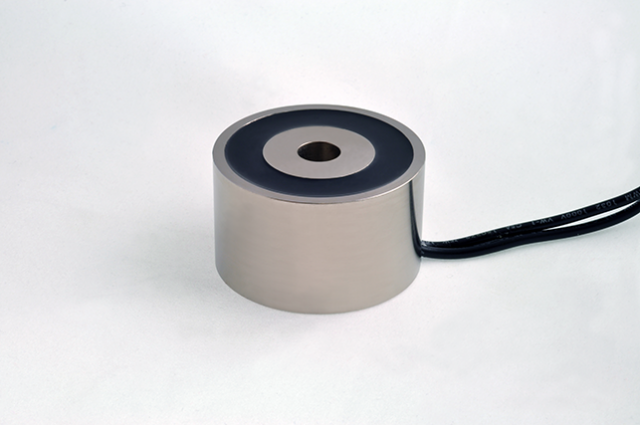

EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs. image 0

EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs.

$59.75
Skip to product information
EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs. image 0
  • EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs. image 0

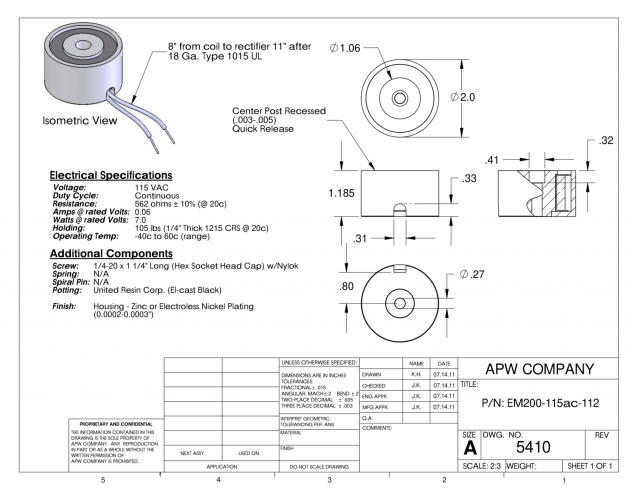

  • EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs. image 1
EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs.
SKU: 5410

EM200-115ac-112 - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 105 lbs.

$59.75
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
105
Ohms
1916.67
Watts
6.9
Amps
0.06
Duty
Continuous
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-115ac-112 is a high quality, precision made Round Electromagnet with a 2 inch diameter and holding force of 105 lbs. This electromagnet operates at 115 volts AC, making it ideal for a variety of applications where strong, reliable magnetic holding force is required. These applications include door locks, solenoids, clamps, conveyors, and more. The EM200-115ac-112 is designed with mechanical and electrical engineers in mind, providing a reliable and efficient solution for various industrial and commercial applications.

SKU: 5410
Category: Electromagnets , Round Electromagnets
Tags: 0.06 , 1/4-20 x 1 1/4 , 105 , 105 lbs Capacity , 115 , 115 volts , 2 inch Diameter , AC , AC Voltage , Continuous , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM200 , Holding Force , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
