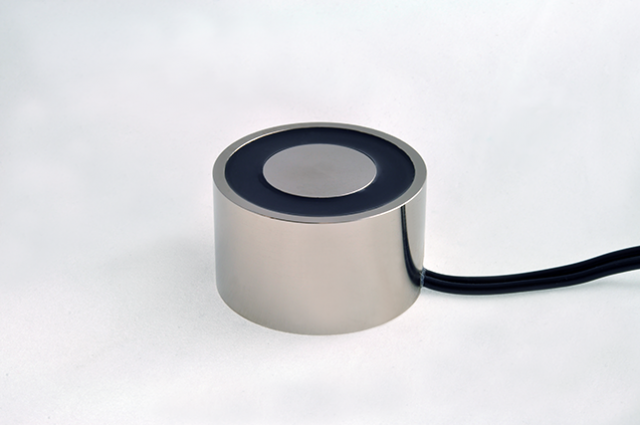

EM200-115ac-112-AB - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs. image 0

EM200-115ac-112-AB - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.

$69.63
Skip to product information
EM200-115ac-112-AB - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs. image 0
SKU: 6191

EM200-115ac-112-AB - Round Electromagnet 2 inch Dia. 115 volts AC - Holding 140 lbs.

$69.63
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
575.0
Watts
23.0
Amps
0.2
Duty
Intermittent
Current
AC
Voltage
115
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 7/16-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-115ac-112-AB is a high-performance round electromagnet with a diameter of 2 inches and a holding capacity of 140 lbs. It operates at 115 volts AC and is a high-quality, precision-made product. This electromagnet is ideal for a range of applications, such as material handling, robotics, and automation systems. Its durable construction and high holding capacity make it suitable for heavy-duty industrial applications. It is designed for use by mechanical and electrical engineers who require reliable and efficient electromagnetic technology in their designs.
