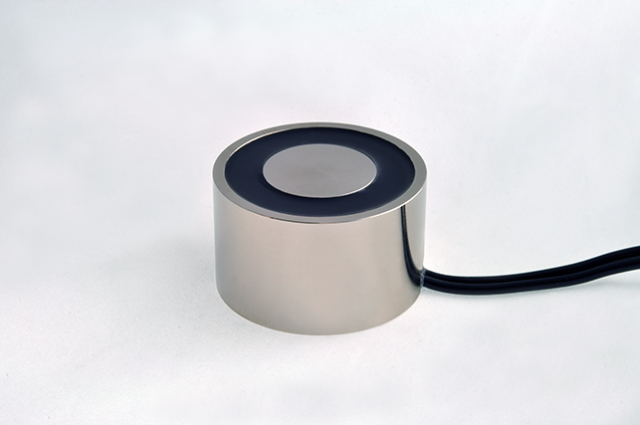

EM200-110ac-212-A - Round Electromagnet 2 inch Dia. 110 volts AC - Holding 140 lbs. image 0

EM200-110ac-212-A - Round Electromagnet 2 inch Dia. 110 volts AC - Holding 140 lbs.

$59.75
Skip to product information
EM200-110ac-212-A - Round Electromagnet 2 inch Dia. 110 volts AC - Holding 140 lbs. image 0
SKU: 6059

EM200-110ac-212-A - Round Electromagnet 2 inch Dia. 110 volts AC - Holding 140 lbs.

$59.75
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

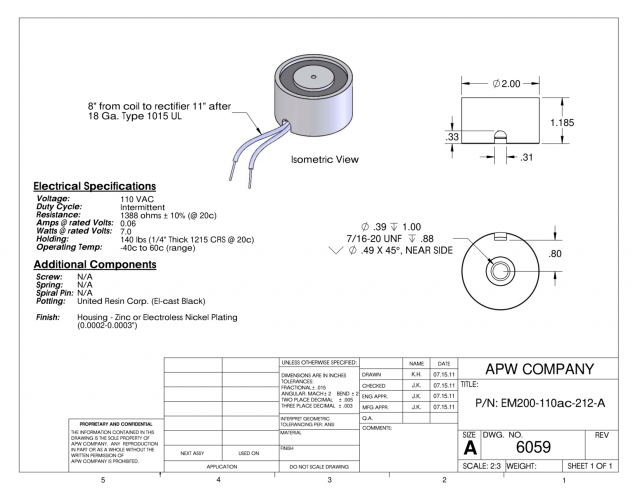

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
1833.33
Watts
6.6
Amps
0.06
Duty
Intermittent
Current
AC
Voltage
110
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 7/16-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-110ac-212-A Round Electromagnet is a high-quality, precision-made product designed for use in applications requiring strong holding force of up to 140 lbs. This 2-inch diameter electromagnet operates at 110 volts AC and is suitable for a wide range of industrial, manufacturing, and automation processes. The electromagnetic technology is commonly used in material handling, lifting, sorting, and separating applications where a strong magnetic field is necessary. Its efficient and reliable design ensures maximum performance and durability in demanding environments.
