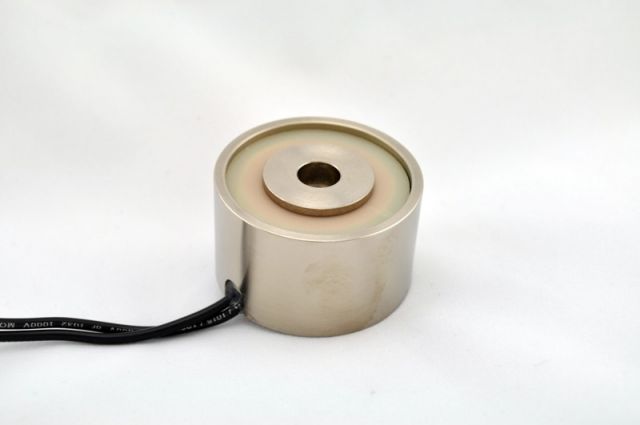

EM200-110-222 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs. image 0

EM200-110-222 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs.

$59.41
Skip to product information
EM200-110-222 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs. image 0
SKU: 6064

EM200-110-222 - Round Electromagnet 2 inch Dia. 110 volts DC - Holding 140 lbs.

$59.41
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

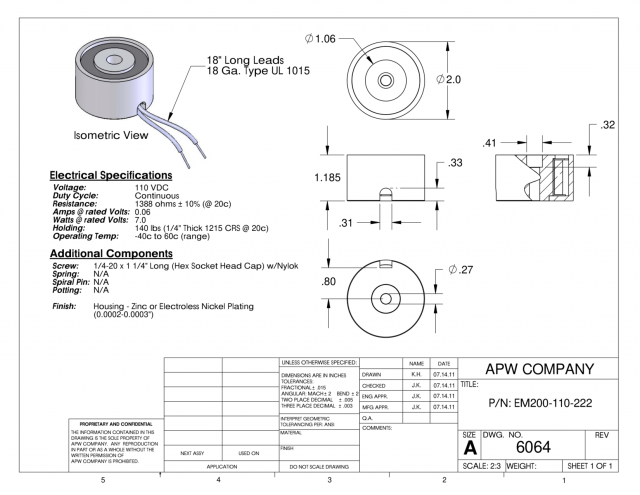

Specifications

Height (mm)
29.97
Height (in)
1.18
Outer Diameter (mm)
50.8
Outer Diameter (in)
2
Holding Force (Lbs.)
140
Ohms
1833.33
Watts
6.6
Amps
0.06
Duty
Continuous
Current
DC
Voltage
110
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
18
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM200-110-222 is a highly efficient, precision-made round electromagnet with a diameter of 2 inches, a voltage of 110V DC, and a holding capacity of 140 lbs. This electromagnet is ideal for use in various mechanical and electrical applications, such as in conveyor systems, sorting equipment, and robotic machinery. Its high-quality construction ensures durability and reliability in demanding environments. With its exceptional holding strength and reliable performance, the EM200-110-222 is an excellent choice for engineers and designers seeking a top-of-the-line electromagnet for their projects.
