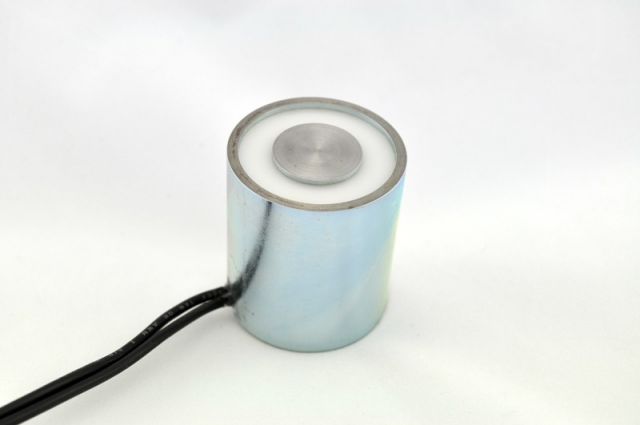

EM175L-6-122 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 83 lbs.
$44.68
Skip to product information
SKU:
5828
EM175L-6-122 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 83 lbs.
$44.68
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Specifications
Height (mm)
50.8
Height (in)
2
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
83
Ohms
4.51
Watts
7.98
Amps
1.33
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 1/4-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2
