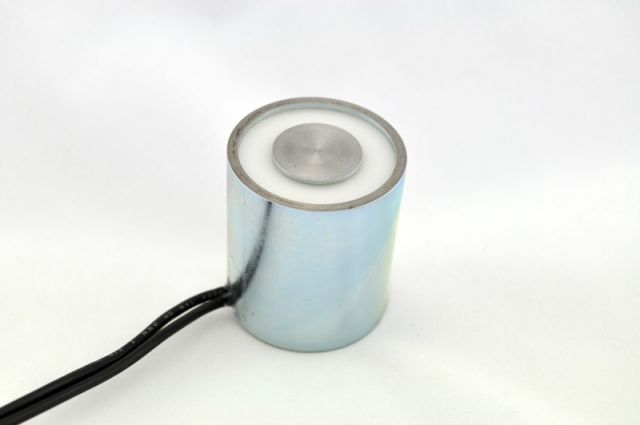

EM175L-12-222 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 110 lbs.
$50.92
Skip to product information
SKU:
5817
EM175L-12-222 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 110 lbs.
$50.92
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

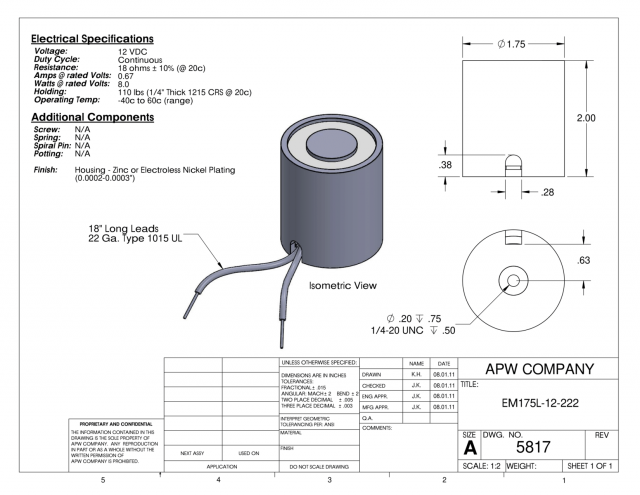

Specifications
Height (mm)
50.8
Height (in)
2
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
110
Ohms
18.18
Watts
7.92
Amps
0.66
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
No
Bolt Desc. or Thread
Female 1/4-20
Mounting Option
Tapped Rear Threaded
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2
