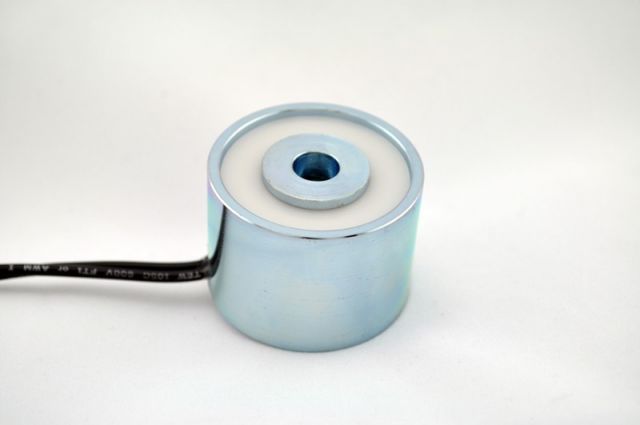

EM175-6-222 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 100 lbs. image 0

EM175-6-222 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 100 lbs.

$38.13
Skip to product information
EM175-6-222 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 100 lbs. image 0
SKU: 5757

EM175-6-222 - Round Electromagnet 1.75 inch Dia. 6 volts DC - Holding 100 lbs.

$38.13

1 in stock

Quantity
Discount (%)
Price

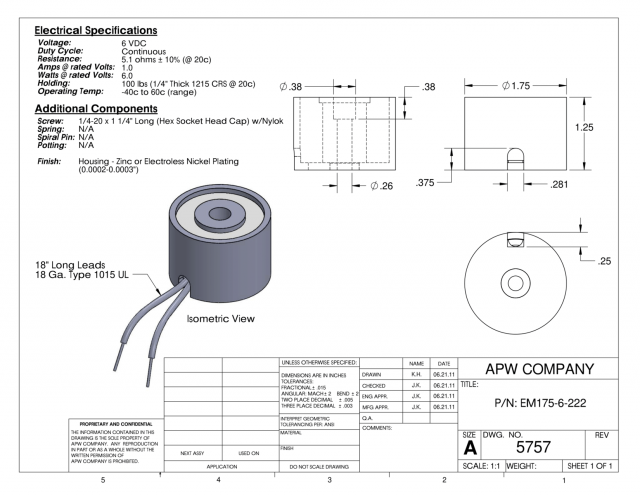

Specifications

Height (mm)
31.75
Height (in)
1.25
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
100
Ohms
6.0
Watts
6.0
Amps
1
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM175-6-222 Round Electromagnet, with a diameter of 1.75 inches and holding capacity of 100 lbs, is designed to deliver superior performance in a wide range of applications. Built with high-quality precision components, this electromagnet is engineered to operate at 6 volts DC with optimal efficiency. It is ideal for use in various applications, including robotic grippers, conveyors, and sorting systems, where a powerful yet compact and lightweight electromagnet is required. The product is designed to meet the highest quality standards and provide reliable performance in demanding environments.
