EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs. image 0

EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs.

$45.58
Skip to product information
EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs. image 0

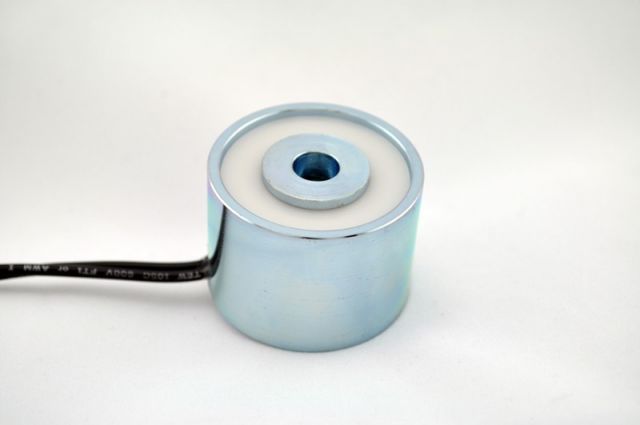

  • EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs. image 0

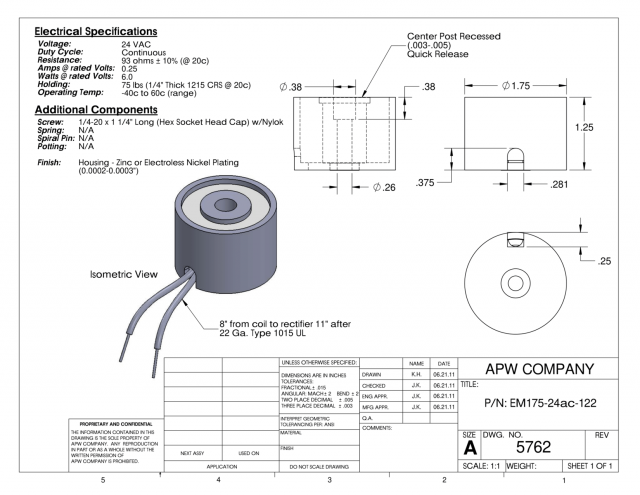

  • EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs. image 1
EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs.
SKU: 5762

EM175-24ac-122 - Round Electromagnet 1.75 inch Dia. 24 volts AC - Holding 75 lbs.

$45.58
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

Specifications

Height (mm)
31.75
Height (in)
1.25
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
75
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
AC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM175-24ac-122 is a high-quality precision-made round electromagnet, with a holding capacity of 75 lbs. This product has a 1.75-inch diameter and operates on 24 volts AC. Its compact design allows for easy integration into a wide range of industrial applications. Electromagnets are commonly used in robotics, material handling, and manufacturing industries, among others. This product is an ideal solution for applications that require reliable and efficient holding of ferrous materials, with the added advantage of being powered by AC voltage.

SKU: 5762
Category: Electromagnets
Tags: 0.25 , 1.75 inch Diameter , 1/4-20 x 1 1/4 , 24 , 24V AC , 75 , 75 lbs Capacity , AC , Continuous , Electromagnet , Electromagnets > Round Electromagnets , Holding Force , Magnetic Attraction , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
