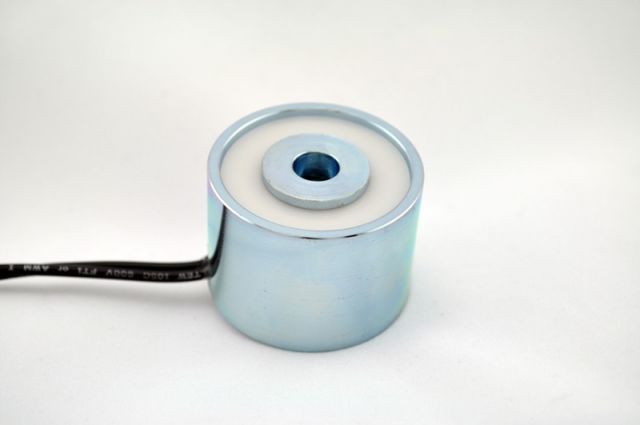

EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs. image 0

EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs.

$38.13
Skip to product information
EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs. image 0
  • EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs. image 0
  • EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs. image 1
EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs.
SKU: 5755

EM175-24-222-A - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 100 lbs.

$38.13
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

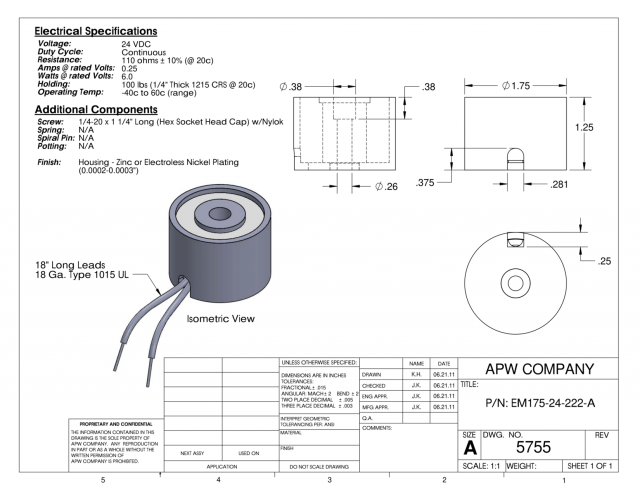

Specifications

Height (mm)
31.75
Height (in)
1.25
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
100
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM175-24-222-A is a high-performance round electromagnet designed for mechanical and electrical engineering applications. With a diameter of 1.75 inches, the electromagnet can hold up to 100 lbs of weight when powered with 24 volts DC. This precision-made product boasts high quality and reliability for industrial environments, making it ideal for a range of applications including robotics, sorting and separating equipment, and lifting and clamping systems. The EM175-24-222-A provides a cost-effective and efficient solution for electromagnet requirements in various industries.

SKU: 5755
Category: Electromagnets , Round Electromagnets
Tags: 0.25 , 1.75 inch Dia Magnet , 1/4-20 x 1 1/4 , 100 , 100 lbs Magnet , 24 , 24 volts DC Magnet , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , Holding Magnet , Industrial Magnet , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt
