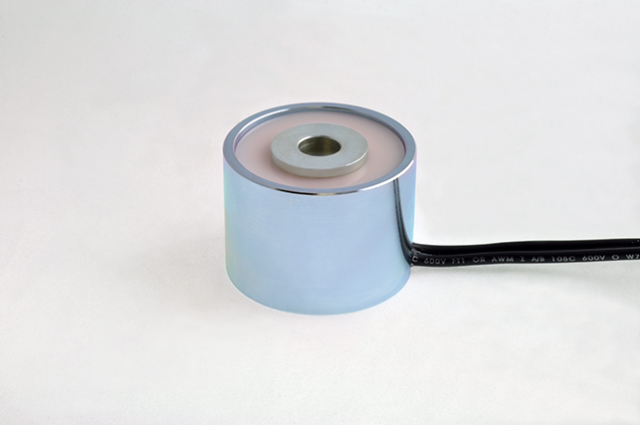

EM175-24-112 - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 75 lbs.

$44.77
Skip to product information
EM175-24-112 - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 75 lbs. image 0
  • EM175-24-112 - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 75 lbs. image 0
EM175-24-112 - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 75 lbs.
SKU: 6395

EM175-24-112 - Round Electromagnet 1.75 inch Dia. 24 volts DC - Holding 75 lbs.

$44.77
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

Specifications

Height (mm)
31.75
Height (in)
1.25
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
75
Ohms
96.0
Watts
6.0
Amps
0.25
Duty
Continuous
Current
DC
Voltage
24
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM175-24-112 is a high-performance round electromagnet, precision-engineered to hold 75 lbs of weight. With a diameter of 1.75 inches, it operates on 24 volts DC and is a top-quality, precision-made product for mechanical and electrical engineers. Applications for this electromagnet include use in robotics, manufacturing, and automation equipment. It features a strong magnetic force, a compact size, and is built to last, making it an ideal choice for a wide range of demanding applications.

SKU: 6395
Category: Electromagnets , Round Electromagnets
Tags: 0.25 , 1.75 inch Diameter , 1/4-20 x 1 1/4 , 24 , 24V DC Magnet , 75 , 75 lbs Holding Capacity , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , Holding Magnet , Industrial Magnet , Magnetic Field , Magnetic Force , Magnetic Pull , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
