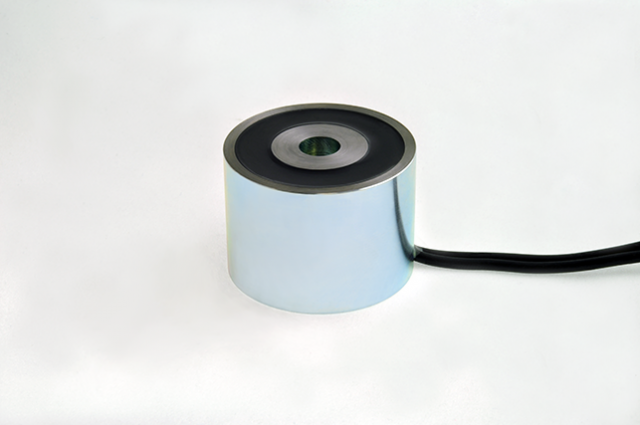

EM175-12-211 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 100 lbs. image 0

EM175-12-211 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 100 lbs.

$38.11
Skip to product information
EM175-12-211 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 100 lbs. image 0
SKU: 6470

EM175-12-211 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 100 lbs.

$38.11
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.

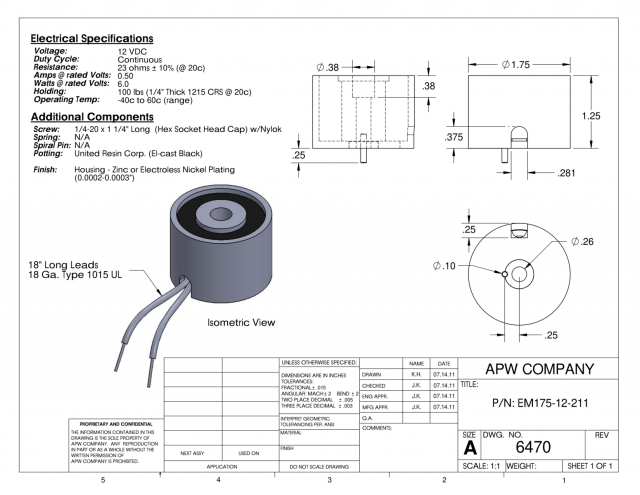

Specifications

Height (mm)
31.75
Height (in)
1.25
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
100
Ohms
24.0
Watts
6.0
Amps
0.5
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
Yes
Encapsulation
Yes
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM175-12-211 is a high-quality, precision-made round electromagnet with a holding force of 100 lbs. This 1.75 inch diameter electromagnet operates on 12 volts DC and is suitable for a variety of applications where a strong magnetic field is required, such as lifting and holding heavy objects in industrial settings or controlling the movement of materials in manufacturing processes. This electromagnet is designed with durability and reliability in mind, and is manufactured to the highest industry standards to ensure optimal performance and longevity.
