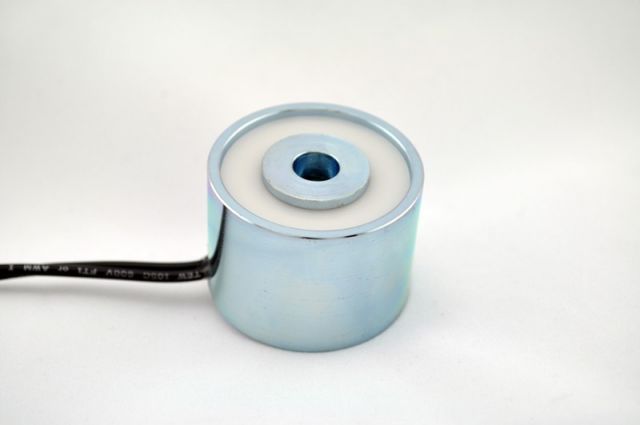

EM175-12-122 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 75 lbs.

$38.13
Skip to product information
EM175-12-122 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 75 lbs. image 0
SKU: 5766

EM175-12-122 - Round Electromagnet 1.75 inch Dia. 12 volts DC - Holding 75 lbs.

$38.13
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

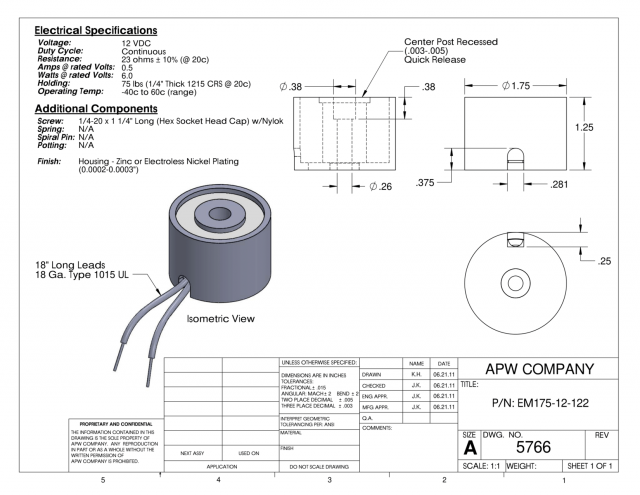

Specifications

Height (mm)
31.75
Height (in)
1.25
Outer Diameter (mm)
44.45
Outer Diameter (in)
1.75
Holding Force (Lbs.)
75
Ohms
24.0
Watts
6.0
Amps
0.5
Duty
Continuous
Current
DC
Voltage
12
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
1/4-20 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

EM175-12-122 is a high-quality, precision-made round electromagnet with a diameter of 1.75 inches, holding capacity of 75 lbs. and operating at 12 volts DC. It has been designed and manufactured to meet the demands of various applications where electromagnets are used, including material handling, automation, and security systems. The product's reliable performance is assured due to its superior construction and materials, making it suitable for use in harsh and challenging environments. Its compact size and versatility make it an ideal choice for a wide range of applications.
