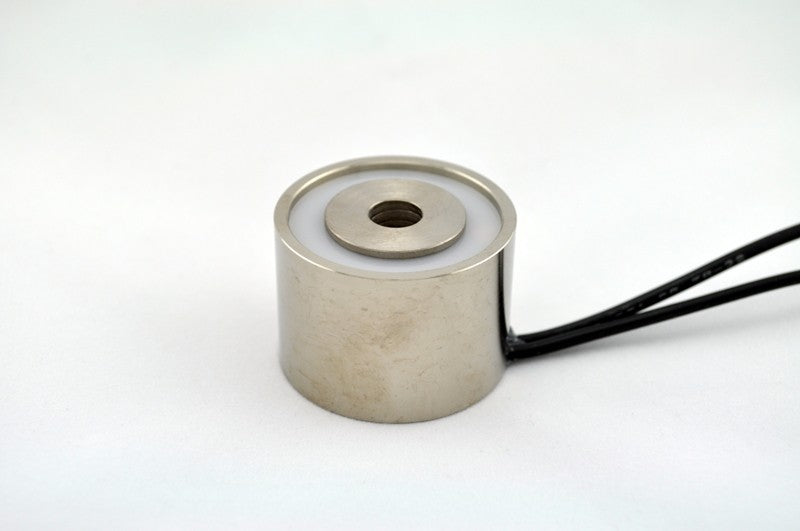

EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs. image 0

EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs.

$30.62
Skip to product information
EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs. image 0
  • EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs. image 0
  • EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs. image 1
EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs.
SKU: 5860

EM150-6-222 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 88 lbs.

$30.62

2 in stock

Quantity
Discount (%)
Price

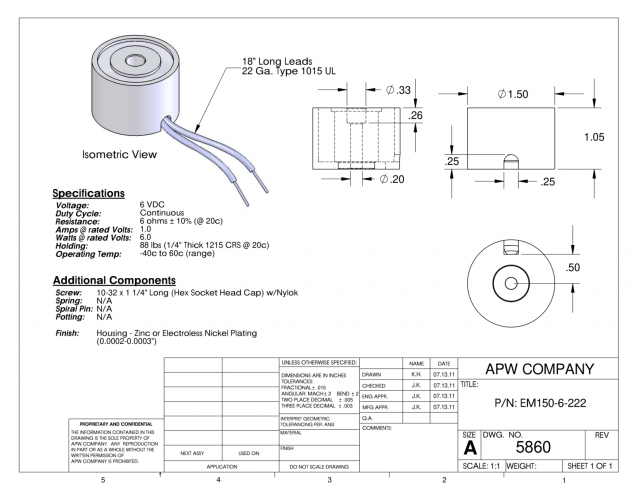

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
88
Ohms
6.0
Watts
6.0
Amps
1
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
No
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-6-222 Round Electromagnet is a high-quality precision-made product designed for use in mechanical and electrical applications. With a 1.5 inch diameter and 6 volts DC, it has the capability of holding 88 lbs. This electromagnet is ideal for use in the automotive industry, as well as in robotics and industrial automation. Its high magnetic strength and reliable performance make it an excellent choice for applications where heavy loads need to be held in place.

SKU: 5860
Category: Electromagnets , Round Electromagnets
Tags: 1 , 1.5 inch Diameter , 10-32 x 1 1/4 , 6 , 6 Volts DC , 88 , Continuous , DC , Electric Magnet , Electromagnets , Electromagnets > Round Electromagnets , EM150-6-222 , Holding 88 lbs. , Magnetic Field , Magnetic Force , Magnetism , No , Round Electromagnet , Round Electromagnets , Solenoid , Through-Hole w/ Shoulder Bolt
