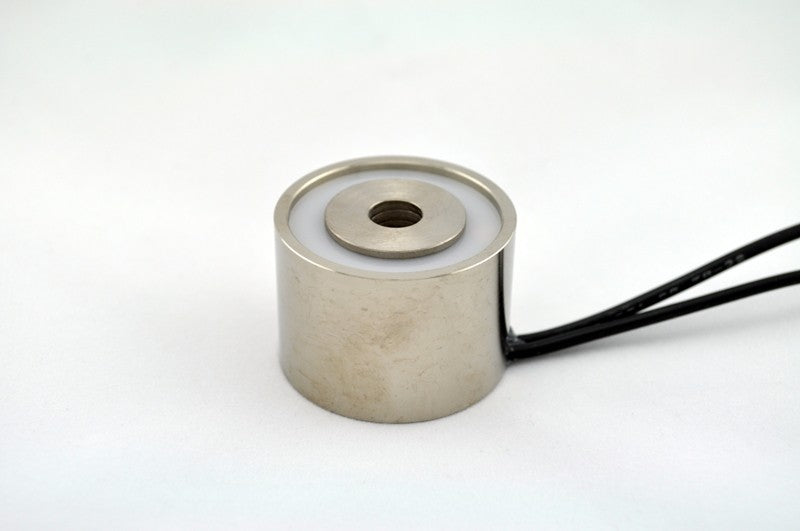

EM150-6-122 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs. image 0

EM150-6-122 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs.

$30.62
Skip to product information
EM150-6-122 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs. image 0
SKU: 5868

EM150-6-122 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs.

$30.62

1 in stock

Quantity
Discount (%)
Price

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
6.0
Watts
6.0
Amps
1
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
No
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-6-122 is a high-quality, precision-made round electromagnet designed for applications that require a holding force of 66 lbs. With a 1.5 inch diameter, this electromagnet operates on 6 volts DC and is suitable for use in mechanical and electrical engineering applications. The product is manufactured with the latest technology and superior craftsmanship, ensuring long-lasting performance and reliability. This round electromagnet finds application in various industries such as automotive, aerospace, robotics, medical devices, and industrial equipment.
