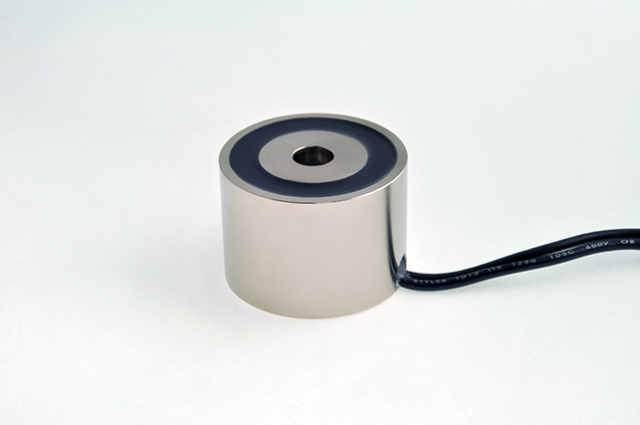

EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs. image 0

EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs.

$37.32
Skip to product information
EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs. image 0
  • EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs. image 0
  • EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs. image 1
EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs.
SKU: 5424

EM150-6-112 - Round Electromagnet 1.5 inch Dia. 6 volts DC - Holding 66 lbs.

$37.32
Available on backorder.
** Backordered items typically ship in 3-5 business days. You will be contacted with a delivery date for any backordered items.
Quantity
Discount (%)
Price

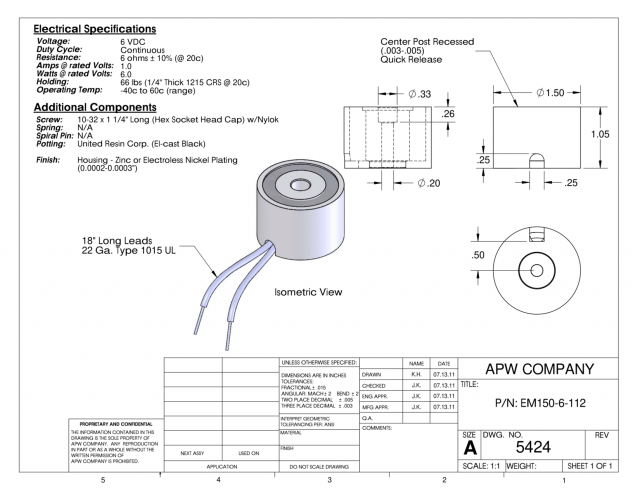

Specifications

Height (mm)
26.67
Height (in)
1.05
Outer Diameter (mm)
38.1
Outer Diameter (in)
1.5
Holding Force (Lbs.)
66
Ohms
6.0
Watts
6.0
Amps
1
Duty
Continuous
Current
DC
Voltage
6
Magnetic Stainless 430FR
No
High Temperature (500 F)
No
Anti-Rotation Pin
No
Encapsulation
Yes
Quick Release
Yes
Mounting Screw Supplied
Yes
Bolt Desc. or Thread
10-32 x 1 1/4
Mounting Option
Through-Hole w/ Shoulder Bolt
Lead Wire Ga.
22
Lead Wire Type
UL
Lead Wire Length (mm)
457.2

Description

The EM150-6-112 is a precision-made round electromagnet designed for use in mechanical and electrical systems. This high-quality product measures 1.5 inches in diameter and is rated for 6 volts DC, with a holding capacity of 66 pounds. This product can be used in a variety of applications, including robotics, automation, and manufacturing. The EM150-6-112 is a reliable and efficient solution for those in need of a powerful electromagnet for their projects.

SKU: 5424
Category: Electromagnets , Round Electromagnets
Tags: 1 , 1.5 inch Diameter , 10-32 x 1 1/4 , 6 , 6 Volts DC , 66 , 66 lbs Capacity , Continuous , DC , Electromagnet , Electromagnets , Electromagnets > Round Electromagnets , EM150-6-112 , Holding Force , Magnetic Attraction , Magnetic Field , Magnetic Pull , No , Round Electromagnets , Round Magnet , Through-Hole w/ Shoulder Bolt , Yes
